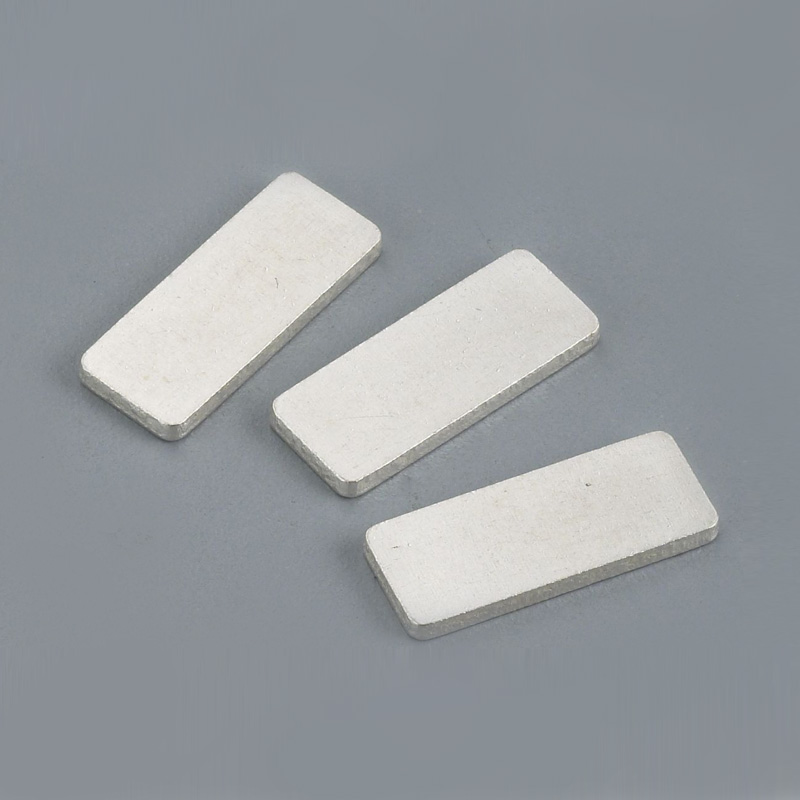

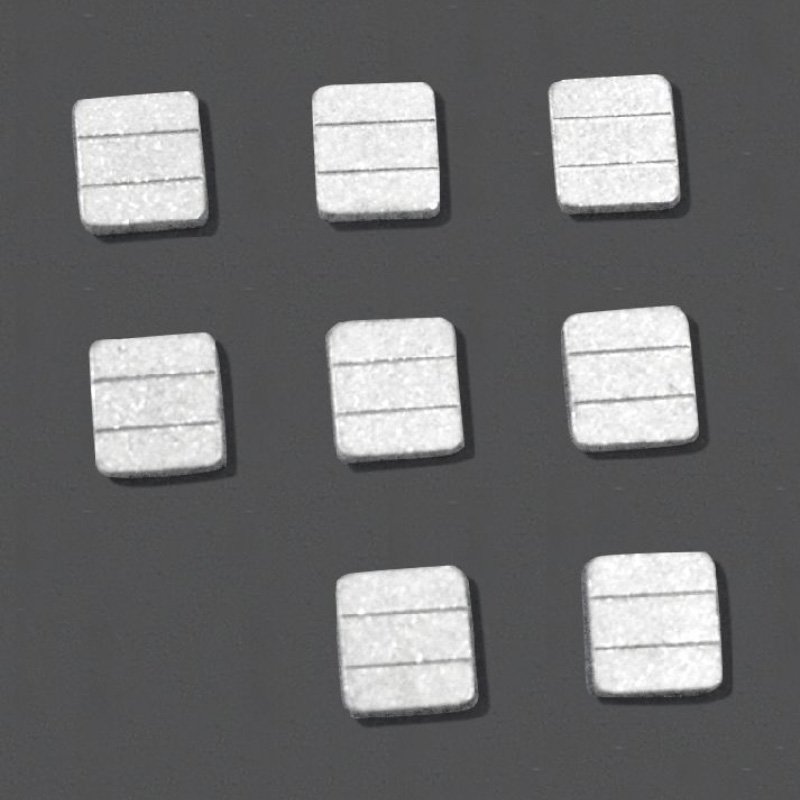

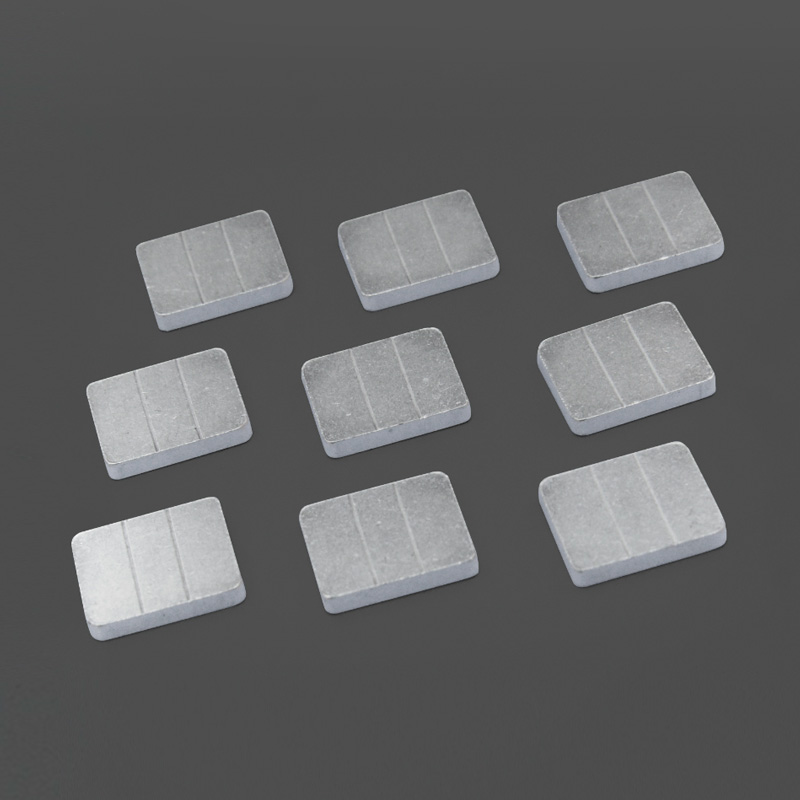

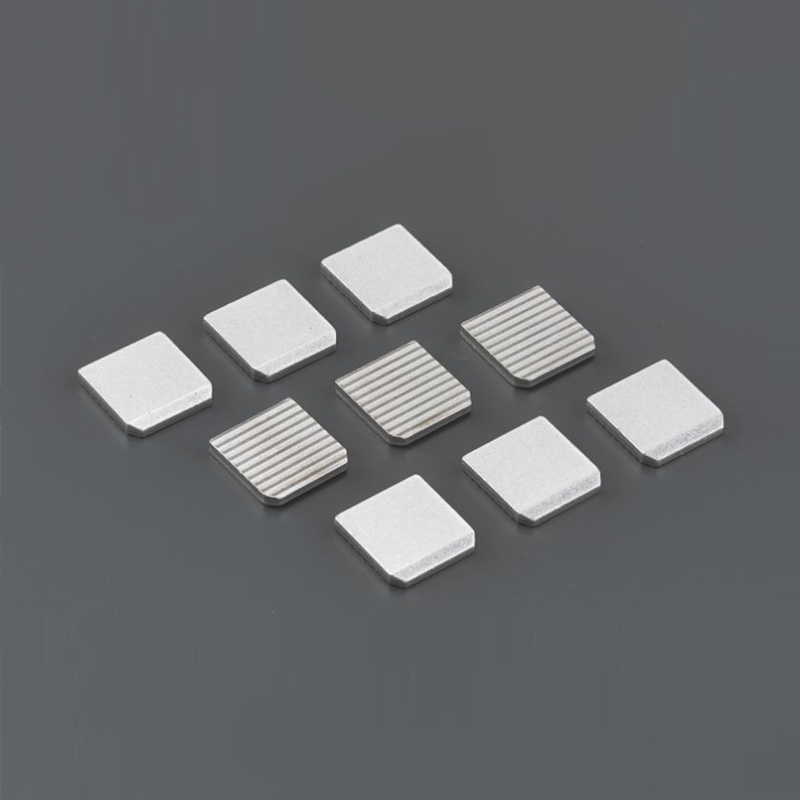

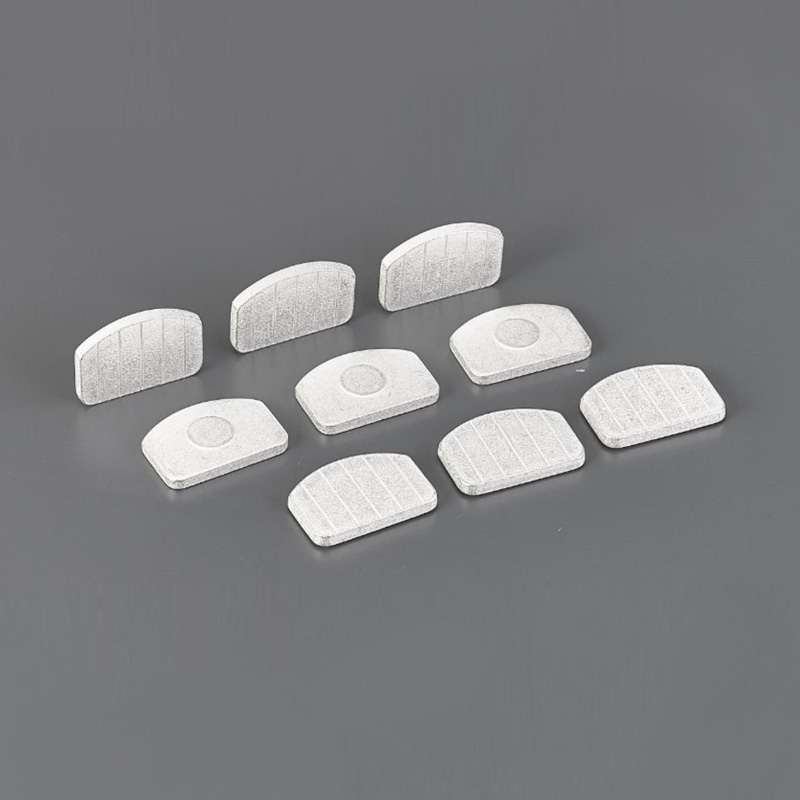

Silver Tin Oxide(AgSnO2) Contact Material
Inquiry
Product introduction
AgSnO2 material is an electrical contact material formed by dividing high melting point, highly wear-resistant tin oxide particles, fibers, dendrites, etc. into a silver matrix in a certain form (gradient or dispersion). Has excellent resistance to arc splash: good resistance to welding, good resistance to material transfer.
Physical Properties
| Makings | Density g/cm³ | Resistivity μΩ.cm | Soft state hardness HB | Conductivity MS/m | Conductivity %IACS |
| AgSn02(8) | ≥9.90 | ≤2.50 | ≥65 | ≥40 | ≥69 |
| AgSno2(10) | ≥9.80 | ≤2.70 | ≥70 | ≥37 | ≥64 |
| AgSno2(12) | ≥9.70 | ≤3.00 | ≥75 | ≥33 | ≥57 |
Ingredient Content
| Makings | Composition wt% | ||
| Ag | Sn02 | Total impurities | |
| AgSno2(8) | Tolerance | 8±1.0 | ≤0.5 |
| AgSno2(10) | Tolerance | 10±1.0 | |
| AgSn02(12) | Tolerance | 12±1.0 | |
Product parameters
