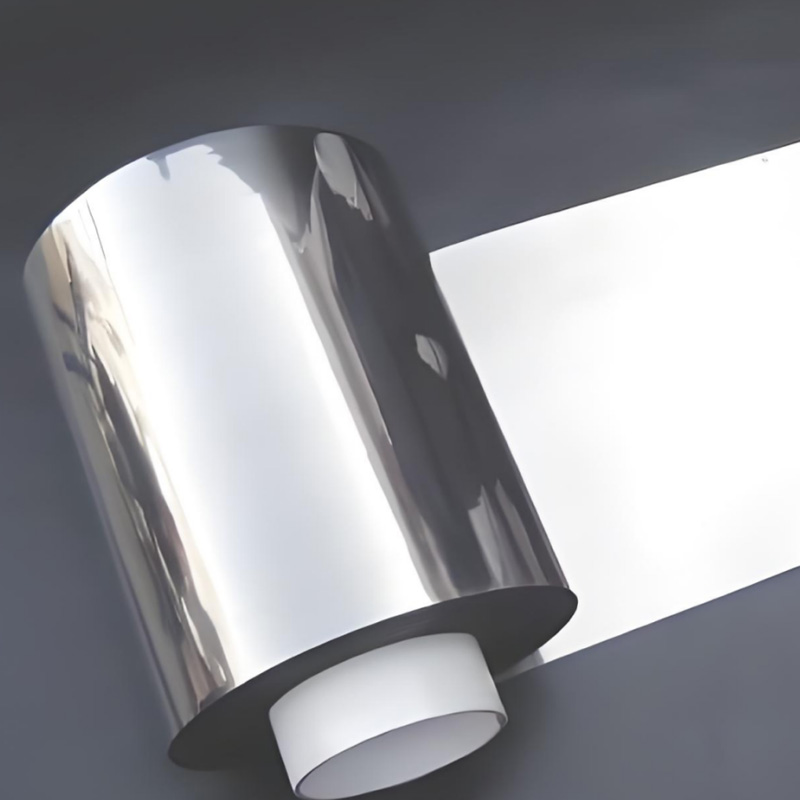

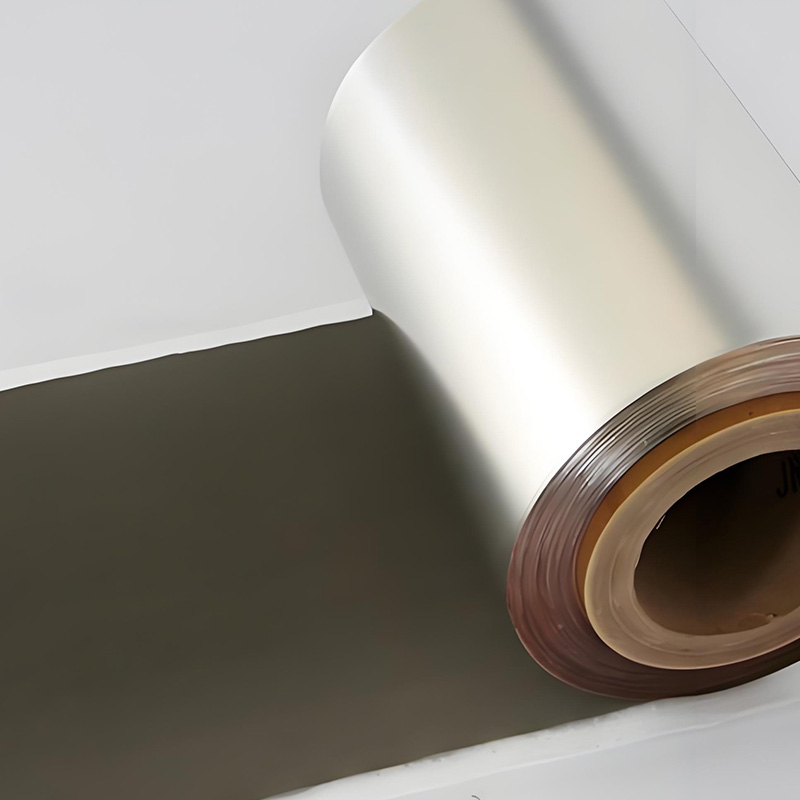

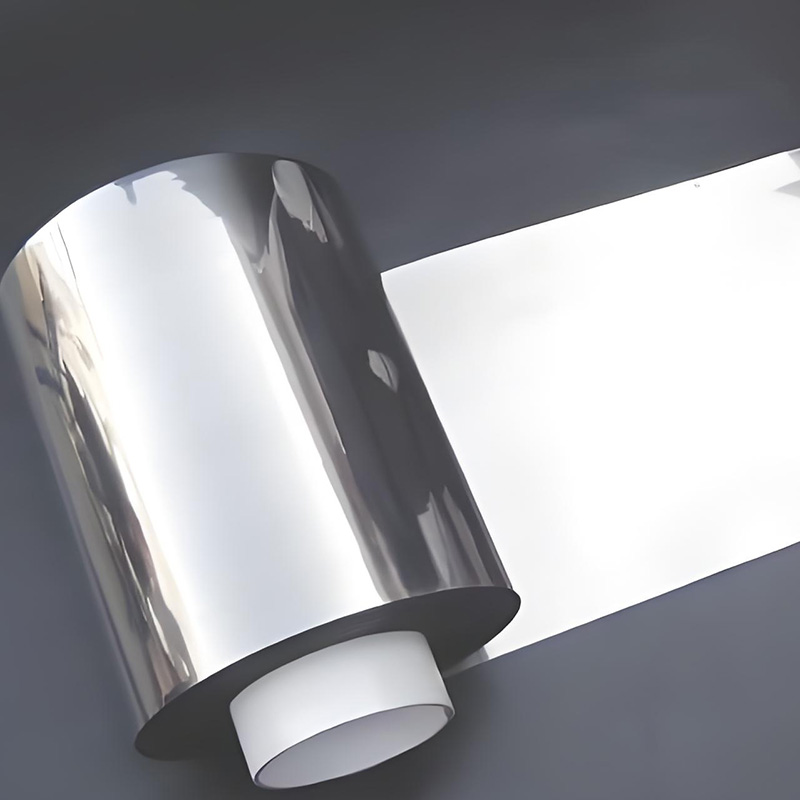

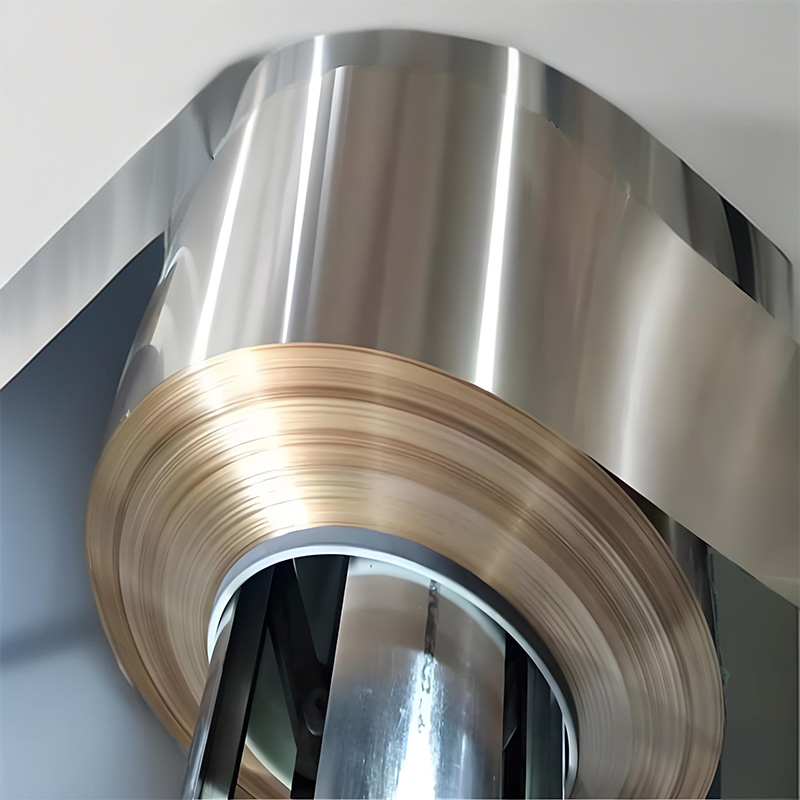

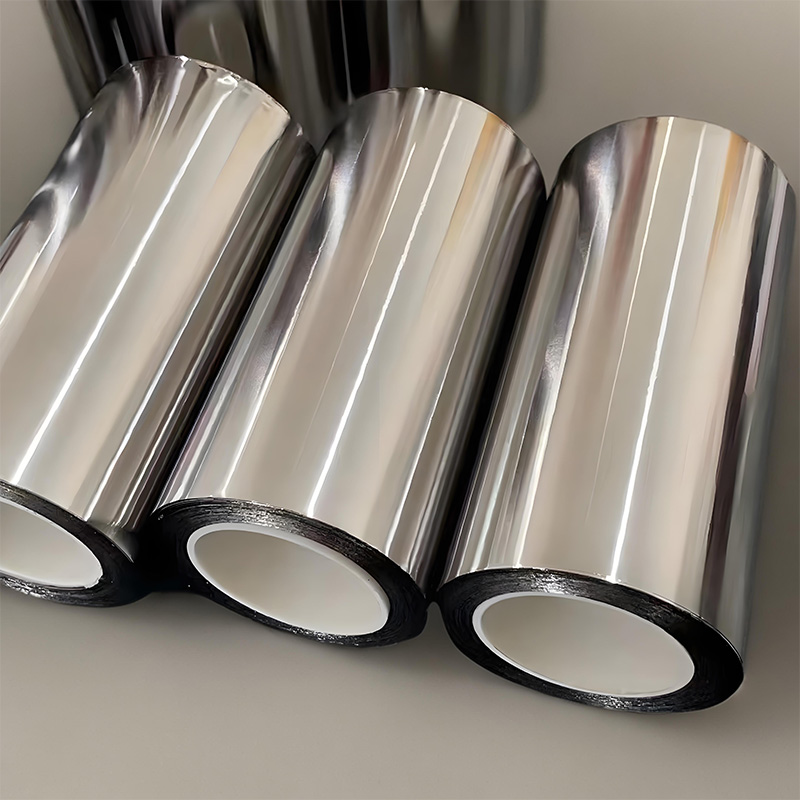

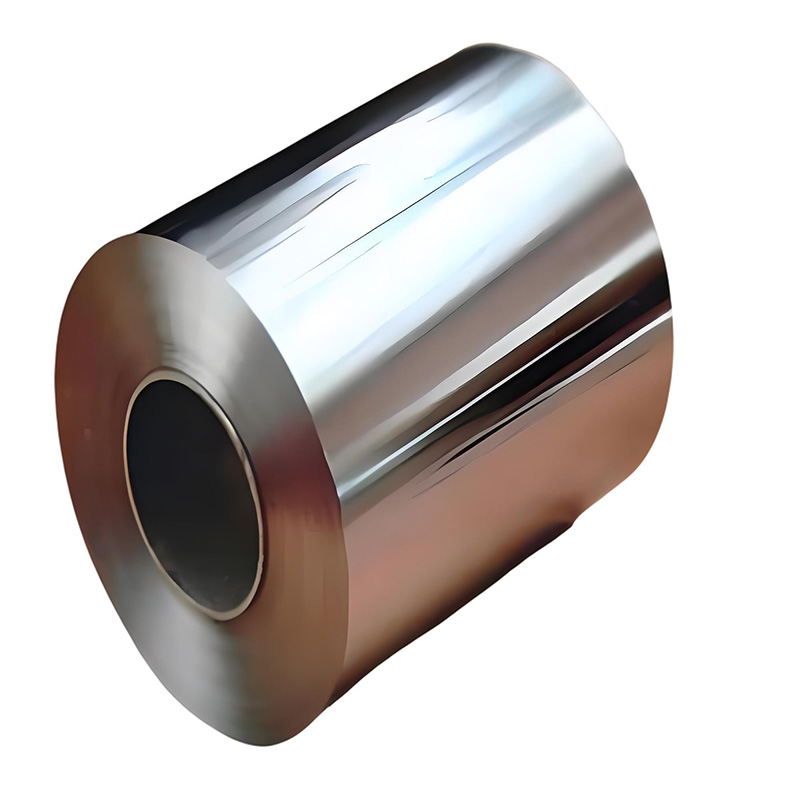

Tin-plated Copper Foil
Inquiry
Product introduction
Tin-plated metal foil is a composite material in which a thin layer of metal tin is coated on the surface of a copper foil. This material combines the high conductivity of copper foil with the excellent properties of tin, such as corrosion resistance and oxidation resistance. Tin-plated copper foil is characterized by its high conductivity, corrosion resistance, and good solderability, and it has a wide range of application prospects in the electronics industry, battery manufacturing, packaging materials, and other fields.
The product is mainly used for making automotive wires, heated glass copper foil conductive wires, cables, signal shielding materials, and food industry, etc.
Physical Properties
| Technical Parameters | Unit | Parameter | |
| Technical Parameters | / | Solderable tin-plated | Non-solderable tinned |
| Width | mm | ≤300mm | |
| Product thickness | mm | 0.035-0.15mm | |
| Thickness of tin layer | μm | ≥0.3 | ≥0.2 |
| Tin content | % | 65-92 | |
| Adhesion | / | 5B | |
| Surface resistance after tinning | Ω | 0.3-0.5 | 0.1-0.15 |
| Tensile strength | N/mm2 | Substrate performance degradation after plating ≤ 10 % | |
| Tensile strength | N/mm2 | Substrate performance degradation after plating ≤ 6 % | |
Ingredient Content
Product parameters
Centred Services
Wenzhou Hongfeng Electrical Alloy Co., Ltd. (hereinafter referred to as “Wenzhou Hongfeng”), founded in September 1997. The main products include electrical contact materials, metal-matrix engineered composite materials, cemented carbide materials, high-performance extremely thin lithium copper foil, and intelligent equipment, providing customers with integrated functional solutions from material research and development to component manufacturing, and then intelligent manufacturing. As Tin-plated Copper Foil company in China, the products are widely applied in industrial manufacturing, intelligent transportation systems, smart homes, communication information, aerospace, mining, machinery manufacturing, medical, and other fields.From quotation to delivery, we provide one-stop customer service, respond quickly to customer needs, solve problems efficiently, and complete delivery; in addition, we can also provide professional material design, process optimization, sample preparation testing, mass production supply, and technical support through services such as professional material design, process optimization, and technical support. Meet customer needs for high-performance alloy materials.
-
Materials Design
And DevelopmentDesign and development of new alloy functional composite materials can be carried out according to customer needs and application requirements.
-
Manufacturing Process
OptimizationThe manufacturing process of new alloy functional composite materials can be optimized for customers.
-
Sample Preparation
And TestingWe can provide customers with sample preparation and testing services for new alloy functional composite materials.
-
Mass Production
And SupplyOnce the new alloy functional composite materials are mass-produced and provide stable and reliable supply.
-
Technical Support
And ConsultingHongfeng can also provide relevant technical support and consulting services to customers. Tin-plated Copper Foil Suppliers.
