Product introduction

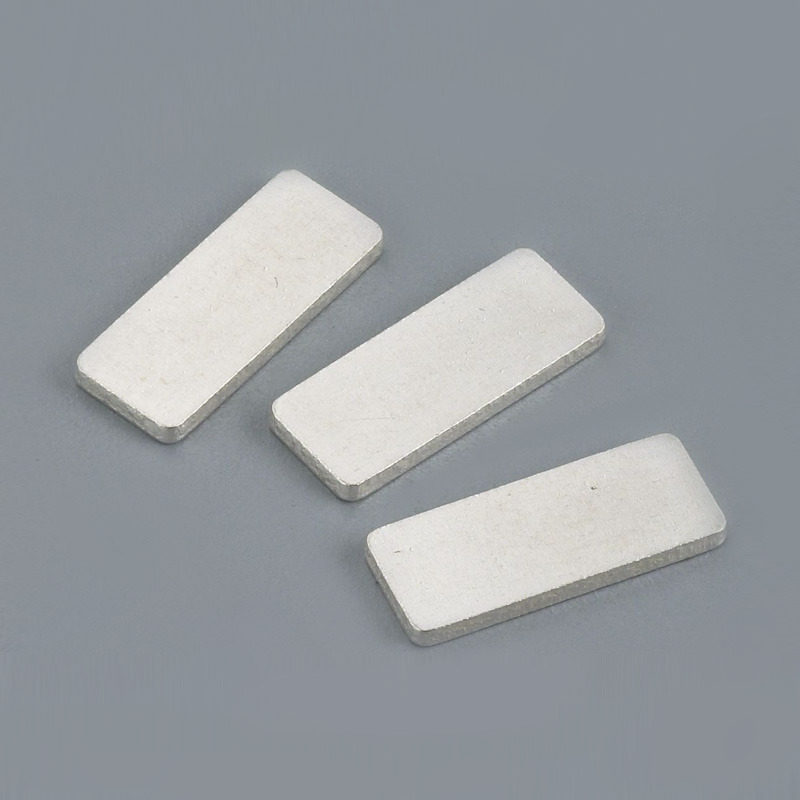

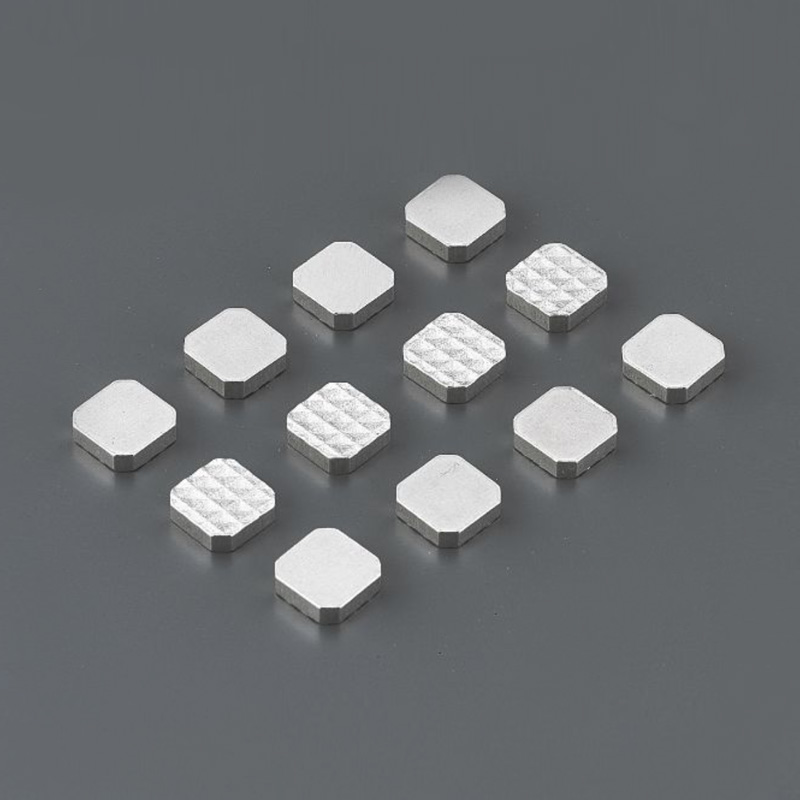

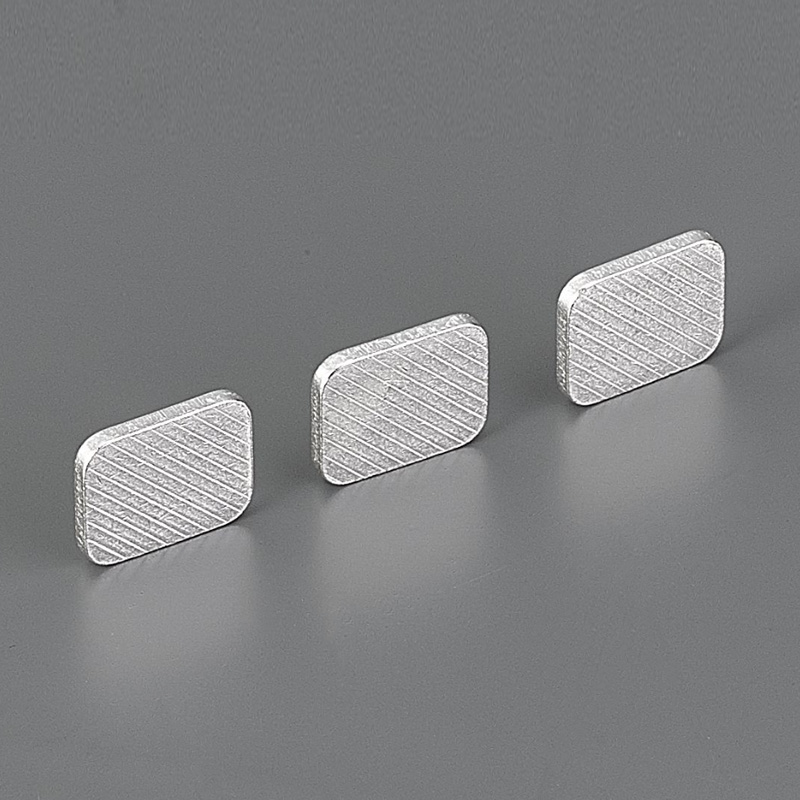

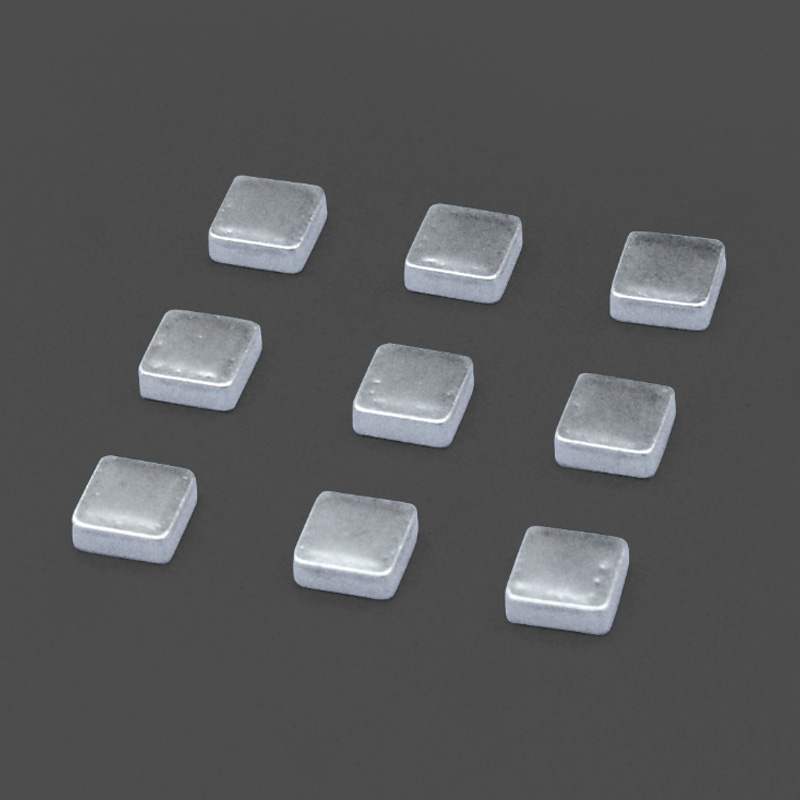

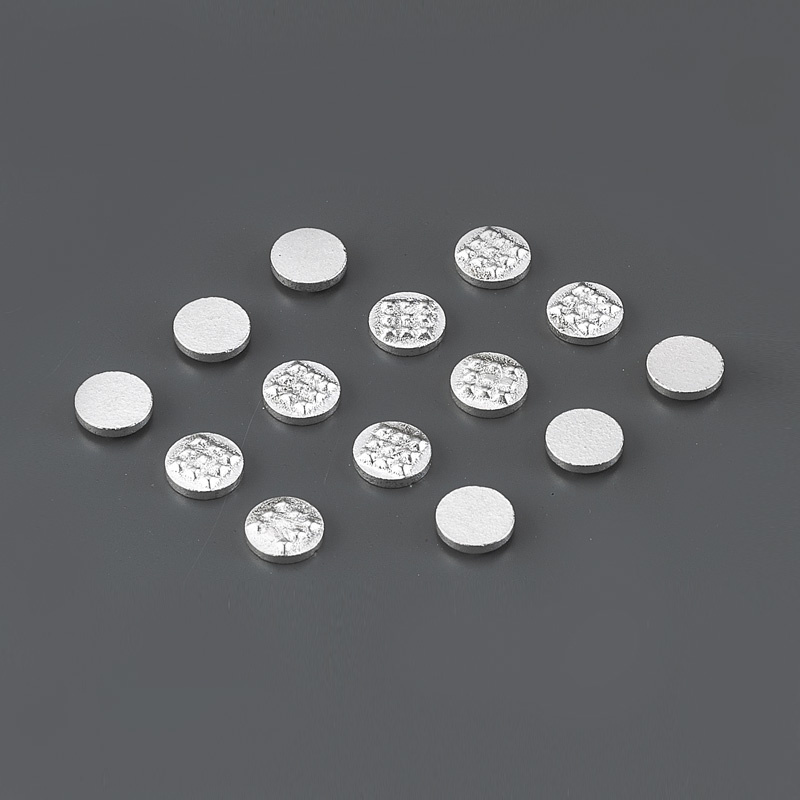

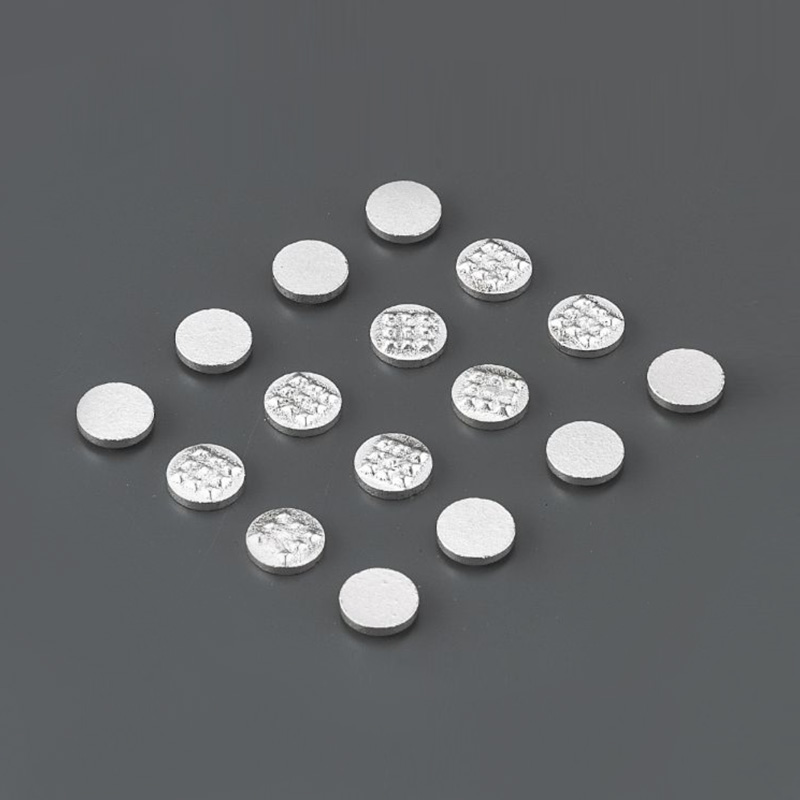

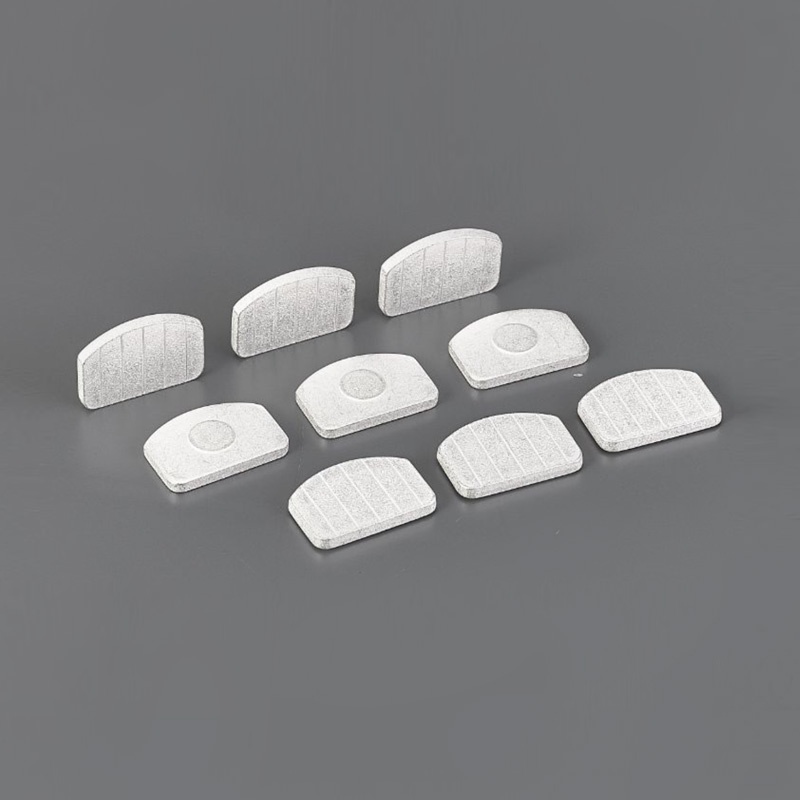

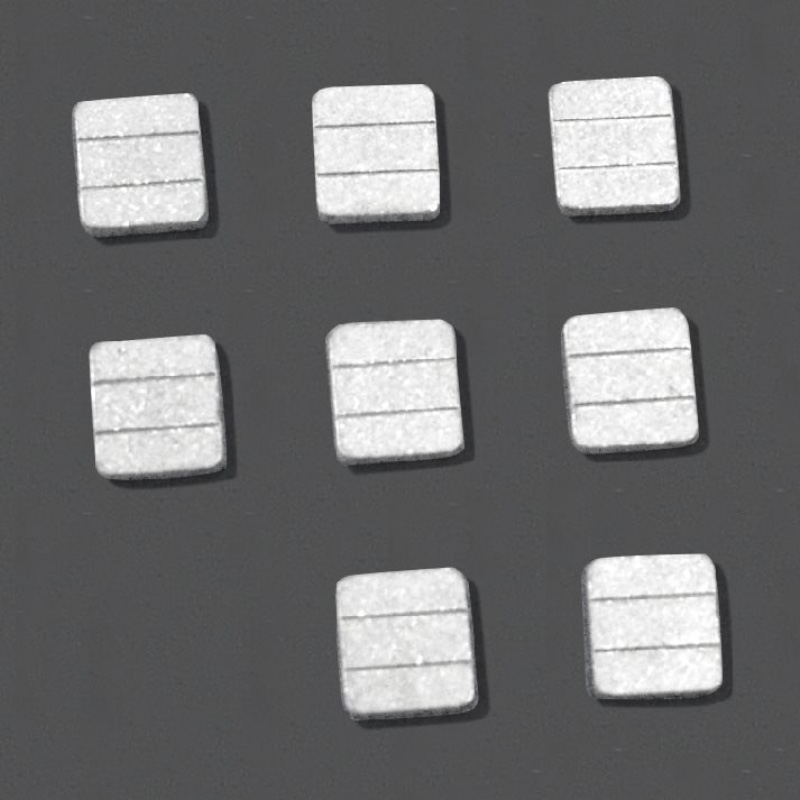

AgW Contact Material is a special material with many unique characteristics. First, silver tungsten silver dots have a very high melting point and corrosion resistance, and can remain stable for a long time in extreme environments. Secondly, silver-tungsten silver dots have good electrical and thermal conductivity and can be widely used in electronic devices and thermally conductive materials. In addition, silver tungsten silver points also have high hardness and wear resistance and can be used to make wear-resistant parts and cutting tools. In addition, silver-tungsten dots also have excellent dimensional stability and low thermal expansion coefficient, making them suitable for manufacturing precision instruments and parts. In short, silver tungsten silver dots are widely used in various fields due to their unique properties.
Powder infiltration process: First, metal powder with a high melting point is pressed or pre-sintered to form a porous body skeleton, and then the low melting point metal is placed under or on top of the porous body skeleton at a temperature higher than the melting point of the low melting point metal. It melts and penetrates the filled pores in the porous skeleton metal to obtain dense silver-tungsten contacts. They are generally used as moving contacts, paired with AgwCC, AgNiC, AgW, and other materials, and used in various universal circuit breakers, molded case circuit breakers, heavy-load AC and DC contactors, and other switching appliances.
Powder sintering process: Generally used as a static contact, paired with Agw, AgWC, and other materials and used in electrical products such as molded case circuit breakers and frame circuit breakers.
Physical Properties
| Makings | Density g/cm³ | Resistivity μΩ.cm | Soft state hardness HB | Conductivity MS/m | Conductivity %IACS |
| AgW(30) | ≥11.75 | ≤2.30 | ≥75 | ≥43 | ≥75 |
| AgW(40) | ≥12.40 | ≤2.60 | ≥85 | ≥38 | ≥66 |
| AgW(50) | ≥13.15 | ≤3.00 | ≥105 | ≥33 | ≥57 |
| AgW(55) | ≥13.55 | ≤3.20 | ≥115 | ≥31 | ≥54 |
| AgW(60) | ≥14.00 | ≤3.40 | ≥125 | ≥29 | ≥51 |
| AgW(65) | ≥14.50 | ≤3.60 | ≥135 | ≥28 | ≥48 |
| AgW(70) | ≥14.90 | ≤3.80 | ≥150 | ≥26 | ≥45 |
| AgW(75) | ≥15.40 | ≤4.20 | ≥165 | ≥24 | ≥41 |
Ingredient Content
| Makings | Composition wt% | ||
| Ag | W | Total impurities | |
| AgW(30) | 70±1.5 | Tolerance | ≤0.5 |
| AgW(40) | 60±1.5 | Tolerance | |
| AgW(50) | 50±2.0 | Tolerance | |
| AgW(55) | 45±2.0 | Tolerance | |
| AgW(60) | 40±2.0 | Tolerance | |
| AgW(65) | 35±2.0 | Tolerance | |
| AgW(70) | 30±2.0 | Tolerance | |
| AgW(75) | 25±2.0 | Tolerance | |
