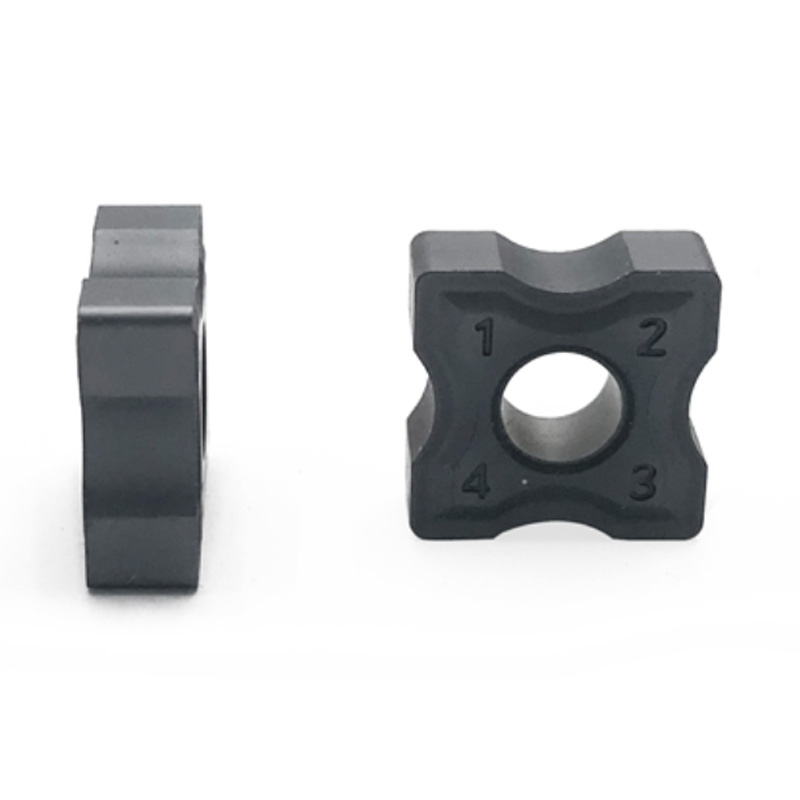

Carbide Chamfering Blade
Inquiry
Product introduction
Alloy chamfering blade is made of high speed steel or carbide, with high hardness, good wear resistance characteristics, suitable for carbon steel and alloy steel continuous cutting semi-finishing and finishing. Intermittent cutting time fine car, cyclone car wire.
Physical Properties
| Grades | Density g/cm3 | Flexural strength N/mm2 | Hardness HRA |
| YT15 | 11.1 | 1300 | 91 |
| YT14 | 11.2 | 1400 | 90.5 |
| YT5 | 12.5 | 1560 | 89.5 |
| YS25 | 12.8 | 1780 | 90.5 |
| YS30 | 12.6 | 1850 | 90.5 |
| YG6X | 14.8 | 1560 | 91 |
| YG6A | 14.7 | 1510 | 91.5 |
| YG6 | 14.7 | 1670 | 89 |
| YG8 | 14.6 | 1840 | 89 |
| YD15 | 14.8 | 1850 | 93.5 |
| YG8N | 14.5 | 1840 | 90 |
| YW1 | 12.7 | 1800 | 91.5 |
| YW2 | 12.5 | 1460 | 90.5 |
| YM10 | 12.1 | 1350 | 91.5 |
Ingredient Content
| Grades | Scope of use |
| YT15 | Suitable for semi-finishing and finishing of carbon and alloy steel in continuous cutting. Fine turning and rotary turning when cutting intermittently. |
| YT14 | Fine turning for continuous cutting of uneven surfaces of carbon and alloy steels, semi-finishing and fine turning for intermittent cutting. |
| YT5 | Rough turning, roughing, semi-finishing planing, roughing iron, etc. for cutting uneven surfaces of medium-pressure and casting skins. |
| YS25 | Rough turning and planing of carbon steel, cast steel, high-tensile steel, high-strength steel and alloy steel. |
| YS30 | Suitable for iron cutting all kinds of steel with large cutting rate, especially suitable for iron cutting and hobbing of alloy steel. |
| YG6X | Suitable for ironing all kinds of steel with large cutting rate, especially suitable for ironing and hobbing of alloy steel. |
| YG6A | For semi-finishing of cast iron, non-ferrous metals and their alloys. |
| YG6 | Suitable for cast iron, non-ferrous metals and their alloys, non-metallic materials semi-finishing finishing |
| YG8 | Rough turning, roughing and sharpening of uneven surfaces and intermittent cutting eyes of metal materials, drilling and reaming of general holes and deep holes. |
| YD15 | Suitable for finish turning, semi-finish turning alloys, nickel-based high-temperature alloys, also suitable for processing all types of cast iron |
| YG8N | Suitable for rough machining of cast iron and non-ferrous metals, also suitable for semi-rough machining of stainless steel. |
| YW1 | Suitable for heat-resistant steel, high manganese steel, stainless steel and other processing just now and ordinary just now, the processing of cast iron. |
| YW2 | Suitable for the processing of heat-resistant steel, high through steel, stainless steel and alloy steel and other difficult to process just now, also suitable for ordinary steel, cast iron processing. |
| YM10 | Suitable for stainless steel finishing, but also words in carbon steel, alloy steel (in addition to nickel-based), the processing of tempered steel. |
Product parameters
| Comparison of grades | |||
| GB/T4461 (China) |
DIN 1715 (Germany) |
ASTM B388 (USA) |
ISO |
| YT15 | S1 | C7 | P10 |
| YT14 | S2 | C6 | P20 |
| YT5 | S3 | C5 | P30 |
| YS25 | - | - | - |
| YS30 | - | - | - |
| YG6X | - | C1 | G05 |
| YG6A | - | - | - |
| YG6 | G1 | C2 | G10 |
| YG8 | - | C1 | G40 |
| YD15 | G1 | - | G10 |
| YG8N | - | - | - |
| YW1 | M1 | - | M10 |
| YW2 | M2 | - | M20 |
| YM1O | - | - | - |
