Silver-Copper Lateral Composite Strip Material
Inquiry
Product introduction

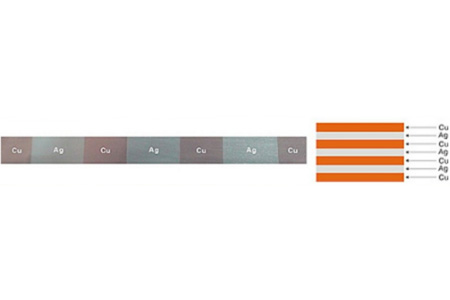

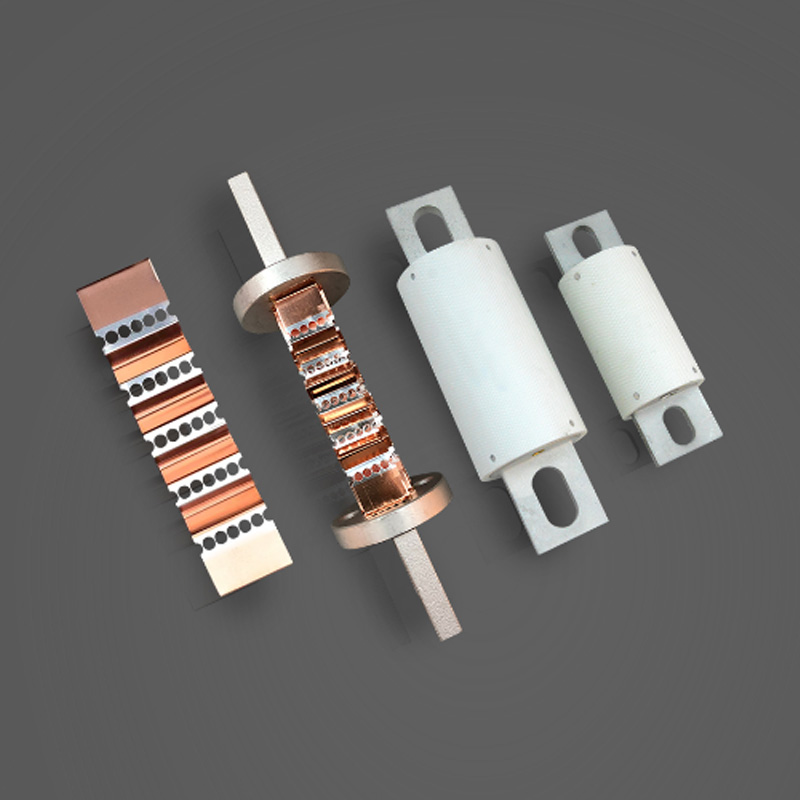

Commonly known as the fused piece, it is a material made of silver and copper arranged at horizontal intervals through side composite technology. Copper is used instead of silver in non-functional areas to meet the conductive effect, and silver is used as the melt in functional areas to save the amount of precious metals. When the current is overloaded, the melt position (silver) fuses, providing timely and effective protection to the circuit. The product is suitable for manufacturing fuses that meet JISC, JEM, JESC: AC, DC120 750V standard fuses, and can also be used for manufacturing highly conductive connectors, etc.
Physical Properties
| Performance Items/Status | Soft state | 1/4 hard state | Hard |
| Conductivity of silver strip (%IACS) |
≥104 | ≥104 | ≥104 |
| Hardness of Silver Surface (HV) |
≥35 | 45-75 | ≥90 |
| Hardness of Copper Surface (HV) |
≥45 | 55-90 | ≥110 |
| Tensile Strength (MPa) |
≥130 | ≥160 | ≥280 |
| Elongation (%) | ≥8 | ≥6 | ≥2 |
| Ag/Cu interfacial bond strength | 25mm wide specimen tensile machine to fracture, fracture is not at the bonding site | ||
