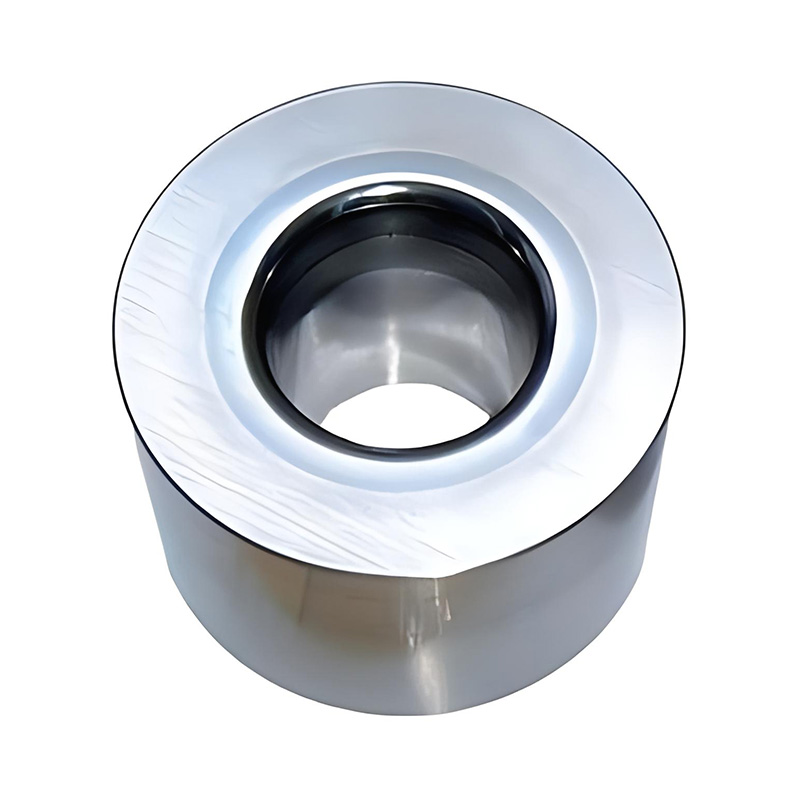

Cold Heading Die
Inquiry
Product introduction
The cold heading die has good wear resistance and high-temperature resistance and is mostly used to manufacture molds with high strength and high hardness. The cold die is mainly used to manufacture various bolts, screws, and other connectors, as well as other metal products with specific shape and precision.
Physical Properties
| φD mm | H mm | φd mm |
| φ15 | <40 | φ1~10.0 |
| φ16 | <40 | φ1~10.0 |
| φ20 | <45 | φ3~10.0 |
| φ25 | <45 | φ3 17.7 |
| φ30 | <45 | φ3~24.0 |
| φ35 | <45 | φ3~25.0 |
| φ40 | <50 | φ3~25.0 |
| φ50 | <50 | φ3~25.0 |
| φ60 | <50 | φ3~25.0 |
Ingredient Content
| φD mm | H mm | W/IC mm |
| φ15~40 | <45 | customized available |
Product parameters
| Classification | Original brand | Grade | January prices | January prices | Cobalt Content (Co%) |
Hardness (HRA) |
Density (g/cm3) |
TRS (N/mm2) |
Grain Size (μm) |
Application Recommended |
| Grade for Stamping die | DK25UF | HU20 | ￥372.00 | $59.05 | 10 | 91.8 | 14.4 | 3500 | Submicron | Applicable to metal sheets stamping with small blanking load, with high wear resistance and long mold application life, mainly for making small punches. |
| YG12C | HM24C | ￥360.00 | $57.14 | 12 | 88.1 | 14.31 | 3200 | Coarse | Applicable to all kinds of metal sheet stamping, medium coarse grain size, high toughness, highly optimized for general use, and wide application range. | |
| YG15N | HMM30AX | ￥365.00 | $57.94 | 15 | 91 | 13.85 | 4000 | Ultrafne | Applicable for stainless steel and copper alloy stamping.High hardness and fine toughness for semi-conductor and electronics stamping. | |
| YG20C | HM40C | ￥373.00 | $59.21 | 20 | 83.5 | 13.5 | 2600 | Coarse | Applicable to standard parts, fasteners, and metal tool industry for cold punching and cutting of general steel and iron. | |
| Grade for Forging die. | YG15 | HM30 | ￥365.00 | $57.94 | 15 | 86.5 | 14 | 3000 | Medium | High toughness cold heading die |
| YG20C | HM40C | ￥373.00 | $59.21 | 20 | 83.5 | 13.5 | 2600 | Coarse | High-impact resistance forging die | |
| ZL40.5 | HM44C | ￥379.00 | $60.16 | 22 | 82.5 | 13.4 | 2400 | Coarse | High-impact resistance forging die | |
| Grade for Non-magnetic die | YN15 | YN15 | ￥346.00 | $54.92 | 15(Ni) | 85.3 | 14.19 | 2700 | Medium | Non-magnetic properties, for iron rivet stamping and magnetic material forming cavities |
| YN7 | YN7 | ￥346.00 | $54.92 | 7(Ni) | 92 | 14.91 | 2300 | Medium | Non-magnetic properties, for copper rivet, iron rivet stamping, and blanking die-making |
Centred Services
Wenzhou Hongfeng Electrical Alloy Co., Ltd. (hereinafter referred to as “Wenzhou Hongfeng”), founded in September 1997. The main products include electrical contact materials, metal-matrix engineered composite materials, cemented carbide materials, high-performance extremely thin lithium copper foil, and intelligent equipment, providing customers with integrated functional solutions from material research and development to component manufacturing, and then intelligent manufacturing. As Cold Heading Die company in China, the products are widely applied in industrial manufacturing, intelligent transportation systems, smart homes, communication information, aerospace, mining, machinery manufacturing, medical, and other fields.From quotation to delivery, we provide one-stop customer service, respond quickly to customer needs, solve problems efficiently, and complete delivery; in addition, we can also provide professional material design, process optimization, sample preparation testing, mass production supply, and technical support through services such as professional material design, process optimization, and technical support. Meet customer needs for high-performance alloy materials.
-
Materials Design
And DevelopmentDesign and development of new alloy functional composite materials can be carried out according to customer needs and application requirements.
-
Manufacturing Process
OptimizationThe manufacturing process of new alloy functional composite materials can be optimized for customers.
-
Sample Preparation
And TestingWe can provide customers with sample preparation and testing services for new alloy functional composite materials.
-
Mass Production
And SupplyOnce the new alloy functional composite materials are mass-produced and provide stable and reliable supply.
-
Technical Support
And ConsultingHongfeng can also provide relevant technical support and consulting services to customers. Cold Heading Die Suppliers.
