Product introduction

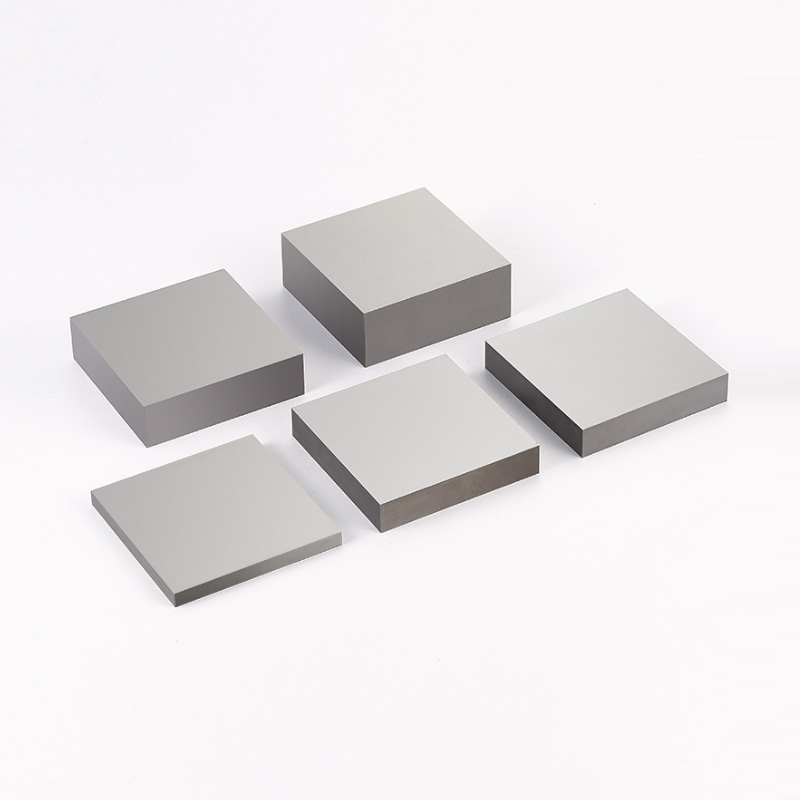

Tungsten steel plate is mainly composed of WC tungsten carbide and Co cobalt powder mixed by metallurgical method through pulverization, ball milling, pressing, sintering, different uses of tungsten steel plate WC and Co composition content is not consistent. Tungsten steel sheet has good rigidity, high hardness, good wear resistance, high elastic modulus, high compressive strength, good chemical stability (acid, alkali, high temperature oxidation), low impact toughness, low expansion coefficient, thermal conductivity, electrical conductivity and iron and its alloy similar characteristics. Tungsten steel sheet is mainly used in the production of cutting copper, aluminum, stainless steel, cold rolled sheet, EI sheet, Q195, SPCC, silicon steel sheet, hardware, standard parts, up and down punches and other thin sheets of high-speed stamping die and multi-station progressive die. It is also an excellent material for making high-temperature resistant parts, wear-resistant parts, anti-shielding parts and corrosion-resistant parts. When used, the appropriate material of tungsten steel sheet should be selected according to the specific use.
Physical Properties
| Type | Basic dimension | ||
| T+0.5 +0.2 |
W+0.6 +0.3 |
L+1.0 0 |
|
| 2x2x330 | 2 | 2 | 330 |
| 2x3x330 | 2 | 3 | 330 |
| 2x4x330 | 2 | 4 | 330 |
| 2x5x330 | 2 | 5 | 330 |
| 2x6x330 | 2 | 6 | 330 |
| 2x7x330 | 2 | 7 | 330 |
| 2x8x330 | 2 | 8 | 330 |
| 2x10x330 | 2 | 10 | 330 |
| 2x12x330 | 2 | 12 | 330 |
| 2x13x330 | 2 | 13 | 330 |
| 2x14x330 | 2 | 14 | 330 |
| 2x15x330 | 2 | 15 | 330 |
| 2x16x330 | 2 | 16 | 330 |
| 2x18x330 | 2 | 18 | 330 |
| 2x19x330 | 2 | 19 | 330 |
| 2x20x330 | 2 | 20 | 330 |
| 2x25x330 | 2 | 25 | 330 |
| 2.9x5.8x330 | 2.9 | 5.8 | 330 |
Ingredient Content
| Type | Basic dimension | |||
| T+0.5 +0.2 |
W+0.6 +0.3 |
L+1.0 0 |
α°± 1.0° | |
| 2.5x3.9x330-8 | 2.5 | 3.9 | 330 | 8 |
| 2.6x4x330-12 | 2.6 | 4 | 330 | 12 |
| 3x4.5x330-8 | 3 | 4.5 | 330 | 8 |
| 3x4.9x330-8 | 3 | 4.9 | 330 | 8 |
| 3.1x5x330-10 | 3.1 | 5 | 330 | 10 |
| 3.6x6x330-8 | 3.6 | 6 | 330 | 8 |
| 5x7x330-8 | 5 | 7 | 330 | 8 |
Product parameters
| Classification | Original brand | Grade | January prices | January prices | Cobalt Content (Co%) |
Hardness (HRA) |
Density (g/cm3) |
TRS (N/mm2) |
Grain Size (μm) |
Application Recommended |
| Grade for Stamping die | DK25UF | HU20 | ￥372.00 | $59.05 | 10 | 91.8 | 14.4 | 3500 | Submicron | Applicable to metal sheets stamping with small blanking load, with high wear resistance and long mold application life, mainly for making small punches. |
| YG12C | HM24C | ￥360.00 | $57.14 | 12 | 88.1 | 14.31 | 3200 | Coarse | Applicable to all kinds of metal sheet stamping, medium coarse grain size, high toughness, highly optimized for general use, and wide application range. | |
| YG15N | HMM30AX | ￥365.00 | $57.94 | 15 | 91 | 13.85 | 4000 | Ultrafne | Applicable for stainless steel and copper alloy stamping.High hardness and fine toughness for semi-conductor and electronics stamping. | |
| YG20C | HM40C | ￥373.00 | $59.21 | 20 | 83.5 | 13.5 | 2600 | Coarse | Applicable to standard parts, fasteners, and metal tool industry for cold punching and cutting of general steel and iron. | |
| Grade for Forging die. | YG15 | HM30 | ￥365.00 | $57.94 | 15 | 86.5 | 14 | 3000 | Medium | High toughness cold heading die |
| YG20C | HM40C | ￥373.00 | $59.21 | 20 | 83.5 | 13.5 | 2600 | Coarse | High-impact resistance forging die | |
| ZL40.5 | HM44C | ￥379.00 | $60.16 | 22 | 82.5 | 13.4 | 2400 | Coarse | High-impact resistance forging die | |
| Grade for Non-magnetic die | YN15 | YN15 | ￥346.00 | $54.92 | 15(Ni) | 85.3 | 14.19 | 2700 | Medium | Non-magnetic properties, for iron rivet stamping and magnetic material forming cavities |
| YN7 | YN7 | ￥346.00 | $54.92 | 7(Ni) | 92 | 14.91 | 2300 | Medium | Non-magnetic properties, for copper rivet, iron rivet stamping, and blanking die-making |
