Product introduction

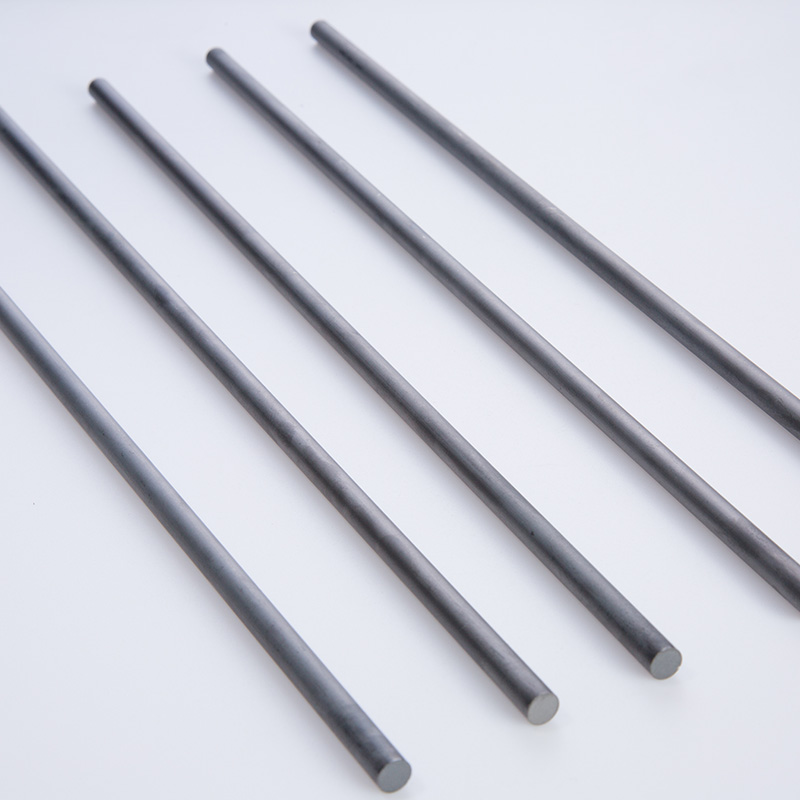

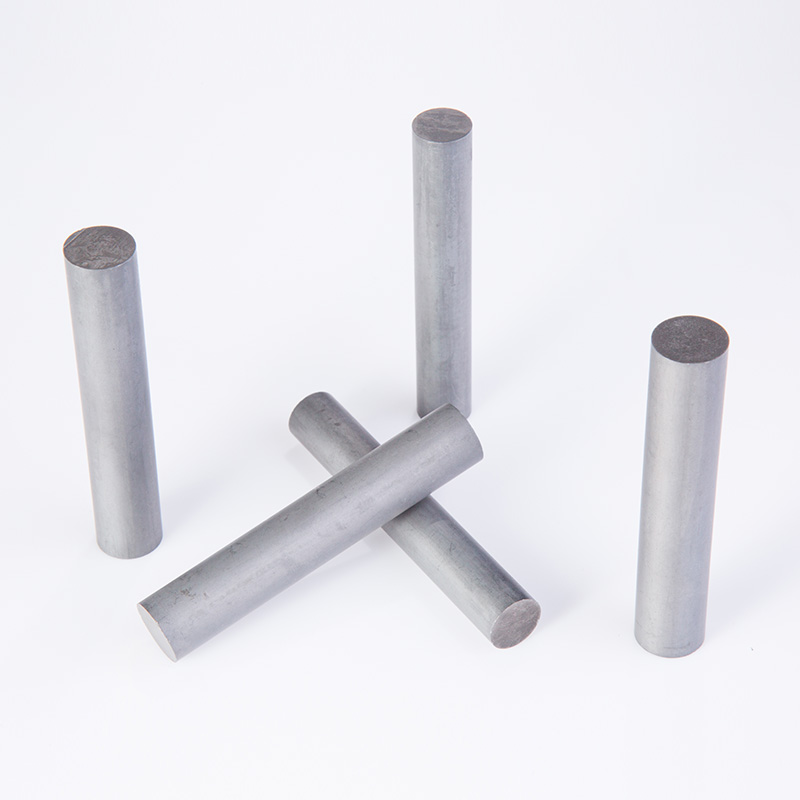

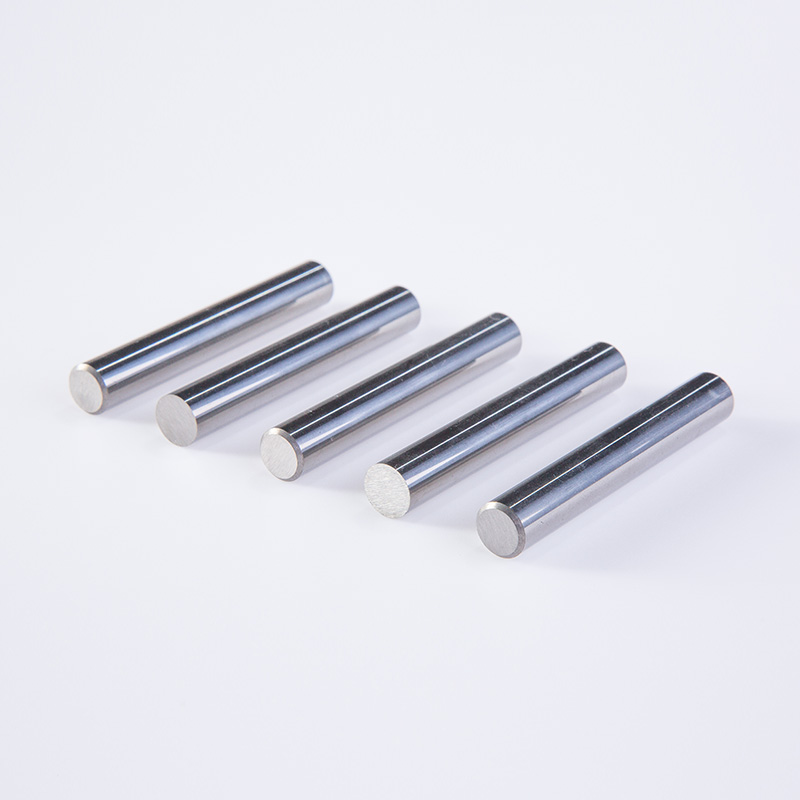

A tungsten carbide needle is a needle-shaped product made of tungsten carbide material, which has high strength, high hardness, good wear resistance, and bending strength.
It is widely used in industrial machinery manufacturing, the electronics industry, the medical industry, measurement, and other fields, and is suitable for manufacturing mold punches, inserts, and probes, as well as other parts used in electronic devices.
Physical Properties
| Grade | Density g/cm³ |
Flexural Strength N/mm2 |
Hardness HRA |
| YT15 | 11.1 | 1300 | 91.0 |
| YT14 | 11.2 | 1400 | 90.5 |
| YT5 | 12.5 | 1560 | 89.5 |
| YS25 | 12.8 | 1780 | 90.5 |
| YS30 | 12.6 | 1850 | 90.5 |
| YG6X | 14.8 | 1560 | 91.0 |
| YG6A | 14.7 | 1510 | 91.5 |
| YG6 | 14.7 | 1670 | 89.0 |
| YG8 | 14.6 | 1840 | 89.0 |
| YD15 | 14.8 | 1850 | 93.5 |
| YG8N | 14.5 | 1840 | 90.0 |
| YW1 | 12.7 | 1800 | 91.5 |
| YW2 | 12.5 | 1460 | 90.5 |
| YM10 | 12.1 | 1350 | 91.5 |
Ingredient Content
| Brand | Scope of use |
| YT15 | Suitable for semi-finishing and finishing during continuous cutting of carbon steel and alloy steel. Finishing and whirlwind threading during intermittent cutting |
| YT14 | Suitable for finishing during continuous cutting of uneven surfaces of carbon steel and alloy steel, semi-finishing, and finishing during intermittent cutting |
| YT5 | Rough turning, rough cutting, semi-finishing planing, rough ironing, etc. during cutting of uneven surfaces (medium pressure and the surface of castings) |
| YS25 | Suitable for rough turning and cutting of carbon steel, cast steel, high manganese steel, high-strength steel and alloy steel |
| YS30 | Suitable for high-feed cutting of various sheets of steel, especially for cutting and gear hobbing of alloy steel |
| YG6X | Suitable for high-feed cutting of various sheets of steel, especially for cutting and gear hobbing of alloy steel |
| YG6A | Suitable for semi-finishing of cast iron, non-ferrous metals and their alloys |
| YG6 | Suitable for semi-finishing of cast iron, non-ferrous metals, and their alloys, non-metallic materials Finishing of machining |
| YG8 | Rough turning, rough cutting, and rough sharpening of uneven surfaces and intermittent cutting holes of metal materials, drilling and expanding of general holes and deep holes |
| YD15 | Suitable for finishing and semi-finishing of alloys, nickel-based high-temperature alloys, and also suitable for machining various types of cast iron |
| YG8N | Suitable for rough machining of cast iron and non-ferrous metals, and also suitable for rough machining and semi-rough machining of stainless steel |
| YW1 | Suitable for machining steels and ordinary steels such as heat-resistant steel, high-manganese steel, and stainless steel, and machining of cast iron |
| YW2 | Suitable for machining difficult steels such as heat-resistant steel, high-through steel, stainless steel, and alloy steel, and also suitable for machining ordinary steel and cast iron |
| YM10 | (Except for finishing of nickel-based stainless steel, it is also suitable for carbon steel and alloy steel), machining of quenched and tempered steel |
Product parameters
| Classification | Grade | Sept. Price Sept. Price (kg/USD ) |
Sept. Price Sept. Price (USD/kg) |
Grain Size (um) |
Cobalt Content (Co%) |
Hardness (HRA) |
Hardness (HV30) |
Density (g/cm3 ) |
TRS (N/mm2) |
Application Recommended |
| Ultrafine | HU12U | 362 | 49.29 | 0.4 | 6 | 93.8 | 1900 | 14.8 | 3900 | Applicated to the high-hardness material processing including PCB drills, milling cutters, and gravers. |
| HU18U | 387 | 52.69 | 0.4 | 9 | 93 | 1850 | 14.5 | 3900 | Applicated for processing the hardness and difficult-to- machine materials, stainless machining, and micro cutter. |
|
| HU24U | 392 | 53.37 | 0.4 | 12 | 92.6 | 1760 | 14.12 | 4200 | Special carbide material of high-speed milling, applicated for alloy steel (HRC50-60), stainless steel. Non-ferrous metal. Titanium alloy, high-temperature alloy, etc. |
|
| HU20X | 375 | 51.06 | 0.6 | 10 | 92.2 | 1730 | 14.43 | 3800 | For general use of high-speed milling and drilling, applicated for alloy steel, stainless steel, cast iron, non-ferrous metal, high-temperature alloy etc. |
|
| Submicron | HU20 | 372 | 50.65 | 0.7 | 10 | 91.9 | 1600 | 14.45 | 3800 | For general use of milling and drilling, applied for alloy steel. Stainless steel, non-ferrous metal, high-temperature alloy, etc. |
| HU20E | 362 | 49.29 | 0.7 | 10 | 91.8 | 1600 | 14.45 | 3700 | For general use of economic milling and drilling, applicated for alloy steel, stainless steel, non-ferrous metal, high temperature alloy etc. |
|
| HU12 | 361 | 49.15 | 1 | 6 | 92.5 | 1740 | 14.85 | 3000 | The best material for diamond coating, suitable for fiber reinforced material (carbon fiber and glass fiber)、 composite material、 high-silicon aluminum alloy and graphite products. |
|
| HF30F | 329 | 44.79 | 0.8 | 10 | 91.8 | 1600 | 14.3 | 3500 | The economic grade for milling, applied for alloy steel, non- ferrous metal etc. |
