Carbide Single Straight Hole Rod

Inquiry
PREV：Carbide 30 Degree Spiral RodNEXT：Carbide Solid Rod
Product introduction

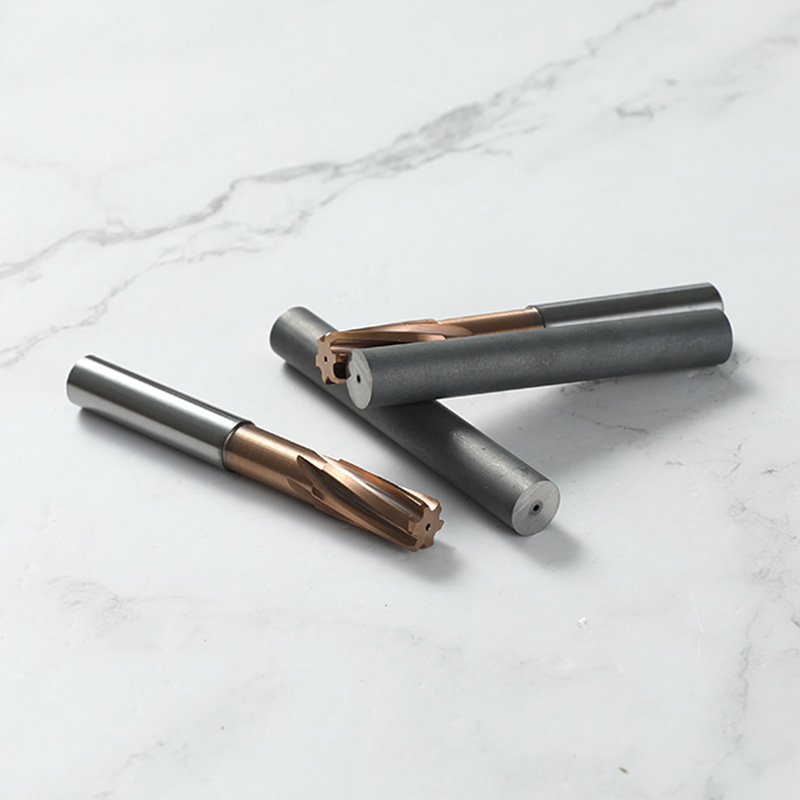

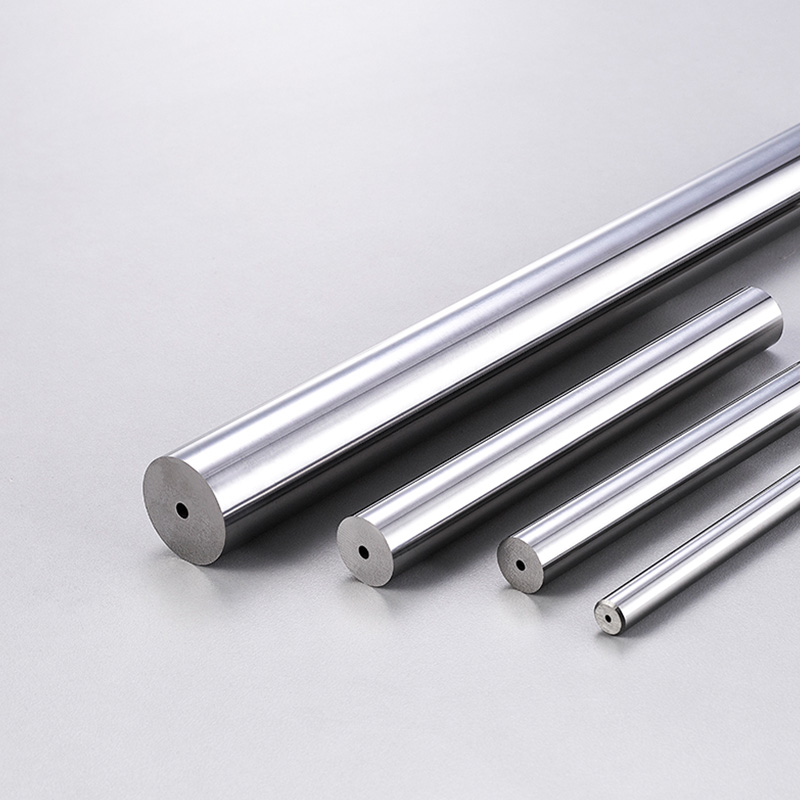

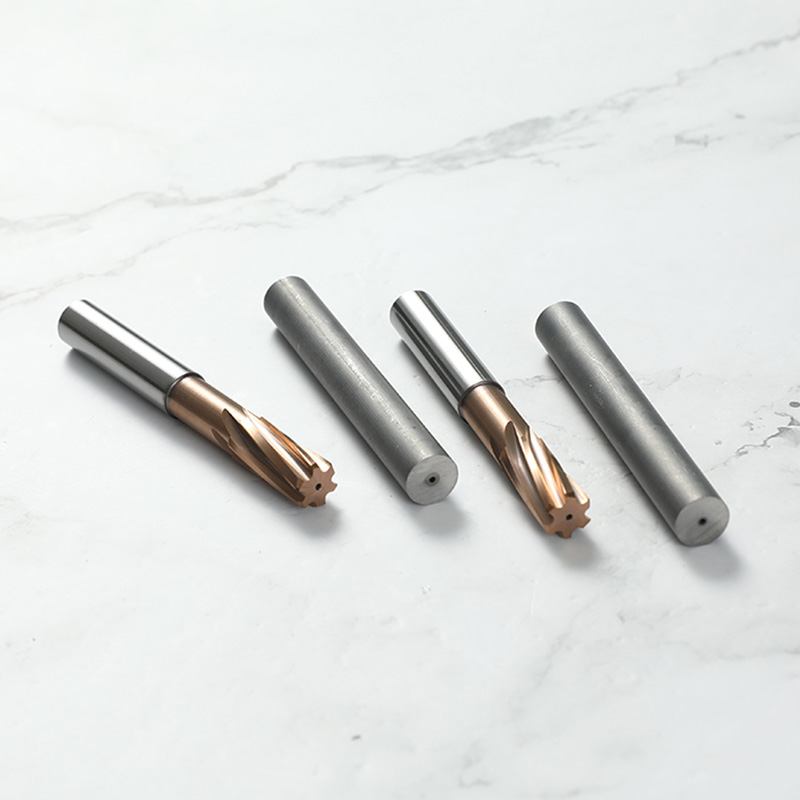

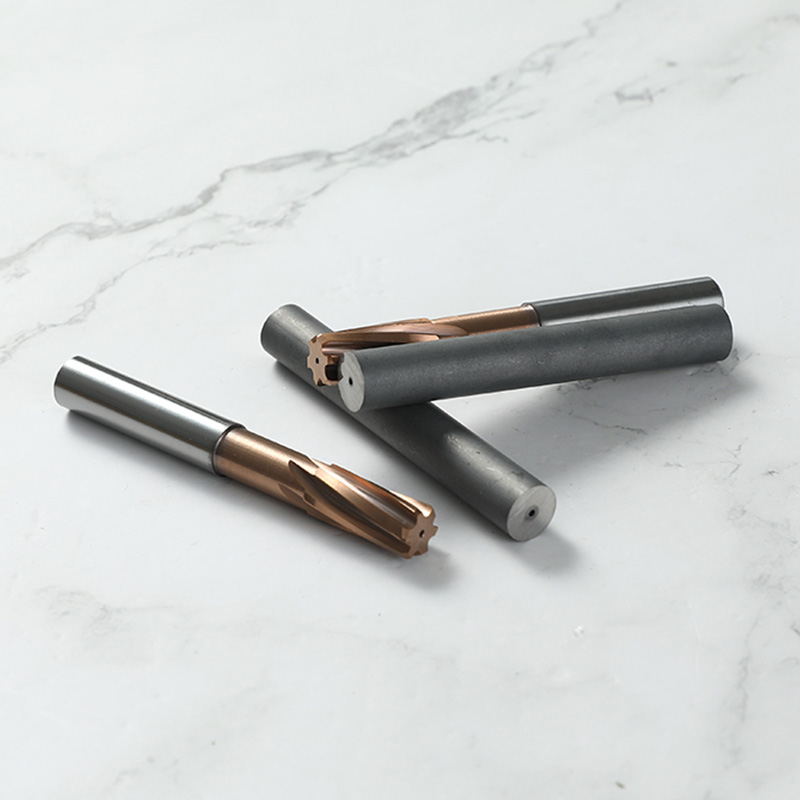

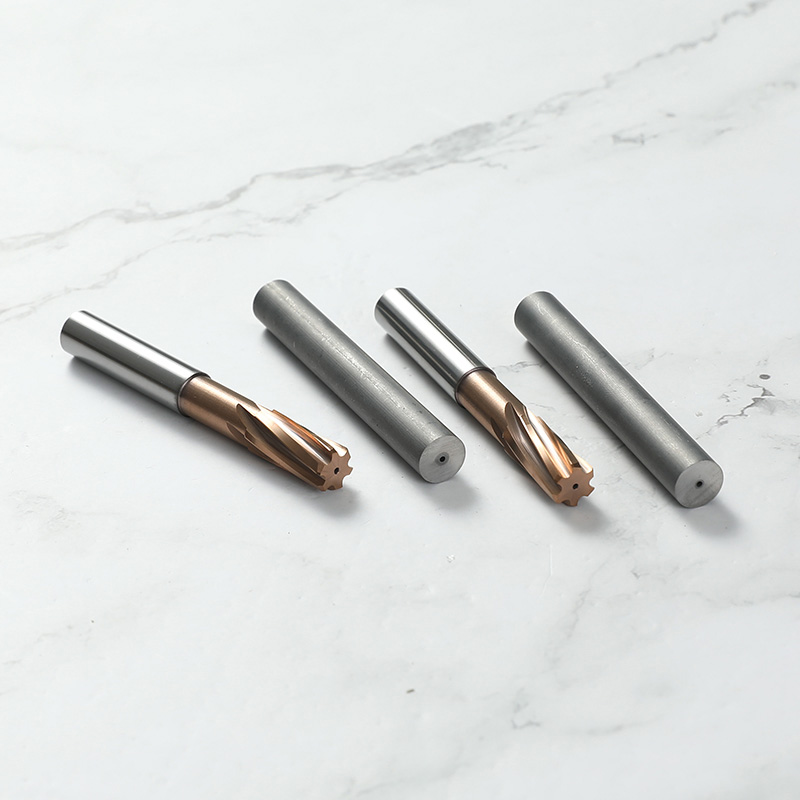

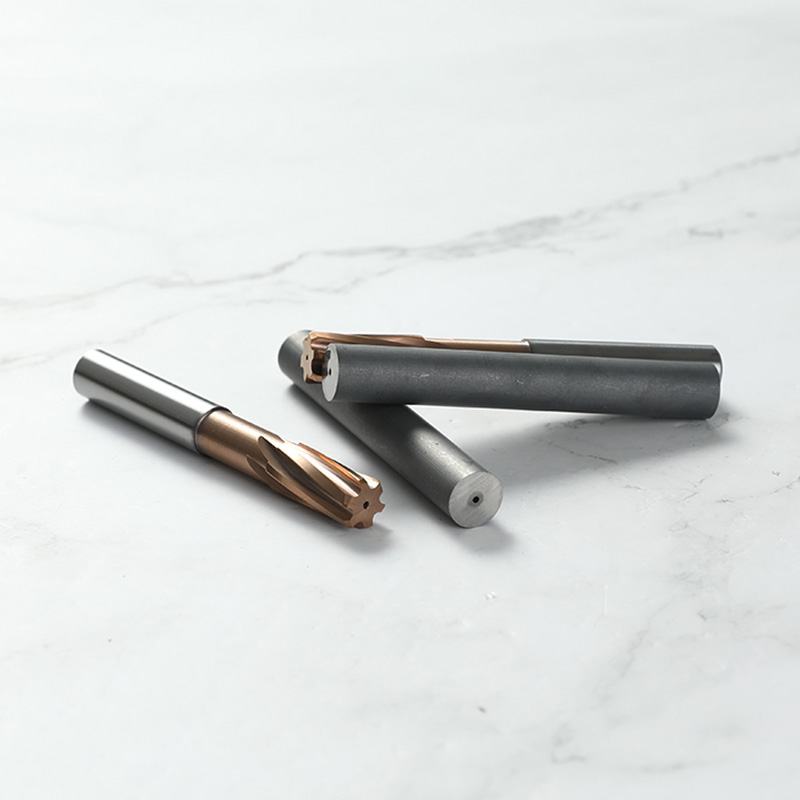

A carbide single straight hole round bar is a kind of carbide bar made by powder metallurgy technology, which has the characteristics of high strength, high hardness, good wear resistance, and bending strength. Its manufacturing process mainly includes mixed powder preparation, pressing, sintering, and processing steps, single straight-hole round rod is mainly used for manufacturing high-precision, high-hardness tools, tools, measuring tools, wear-resistant parts, and structural parts. For example, it can be made into various specifications of drills, tools, and sealing rings through secondary processing to meet the needs of different fields.

Physical Properties
фD Outer diameter Inner hole Hole
Deviation		 L
Length
(0,+5)
Unground Tol. Ground dia. tol.
h6/h5
4.3 +0/+0.2 4 0.6 ±0.1 0.07 330
5.3 +0/+0.2 5 1.0 ±0.1 0.07 330
6.3 +0/+0.2 6 1.0 ±0.1 0.07 330
8.3 +0/+0.3 8 1.2 ±0.15 0.07 330
10.3 +0/+0.3 10 2.0 ±0.2 0.10 330
12.3 +0/+0.3 12 2.0 ±0.2 0.10 330
14.3 +0/+0.4 14 2.0 ±0.2 0.12 330
16.3 +0/+0.4 16 2.0 ±0.2 0.12 330
18.3 +0/+0.5 18 3.0 ±0.25 0.15 330
20.3 +0/+0.5 20 3.0 ±0.25 0.15 330
22.3 +0/+0.5 22 3.0 ±0.25 0.15 330
24.3 +0/+0.5 24 4.0 ±0.25 0.15 330
26.3 +0/+0.5 26 4.0 ±0.25 0.15 330
28.3 +0/+0.5 28 4.0 ±0.25 0.15 330
30.3 +0/+0.5 30 5.0 ±0.25 0.15 330
32.3 +0/+0.5 32 5.0 ±0.25 0.15 330
Ingredient Content
φD Unground tol. Ground tol. φd Hole
Deviation		 L
(0,+0.197)
Dia. Tol.
1/4 +0.0118/+0.0236 h6/h5 3/77 3/77 0.0027 13
9/32 +0.0118/+0.0236 h6/h5 3/77 3/77 0.0027 13
5/16 +0.0118/+0.0236 h6/h5 4/85 4/85 0.0027 13
25/64 +0.0118/+0.0236 h6/h5 6/95 6/95 0.0039 13
13/32 +0.0118/+0.0236 h6/h5 6/95 6/95 0.0039 13
27/64 +0.0118/+0.0236 h6/h5 6/95 6/95 0.0039 13
31/64 +0.0118/+0.0275 h6/h5 3/38 3/38 0.0047 13
1/2 +0.0118/+0.0275 h6/h5 3/38 3/38 0.0047 13
9/16 +0.0118/+0.0275 h6/h5 5/51 5/51 0.0047 13
5/8 +0.0118/+0.0275 h6/h5 11/93 11/93 0.0047 13
3/4 +0.0118/+0.0314 h6/h5 11/93 11/93 0.0059 13
13/16 +0.0118/+0.0314 h6/h5 11/93 11/93 0.0059 13
Product parameters
Classification Grade Sept. Price Sept. Price
(kg/USD )		 Sept. Price Sept. Price
(USD/kg)		 Grain Size
(um)		 Cobalt Content
(Co%)		 Hardness
(HRA)		 Hardness
(HV30)		 Density
(g/cm3 )		 TRS
(N/mm2)		 Application Recommended
Ultrafine HU12U 362 49.29 0.4 6 93.8 1900 14.8 3900 Applicated to the high-hardness material processing
including PCB drills, milling cutters, and gravers.
HU18U 387 52.69 0.4 9 93 1850 14.5 3900 Applicated for processing the hardness and difficult-to-
machine materials, stainless machining, and micro cutter.
HU24U 392 53.37 0.4 12 92.6 1760 14.12 4200 Special carbide material of high-speed milling applied for
alloy steel (HRC50-60), and stainless steel. Non-ferrous metal.
Titanium alloy, high-temperature alloy, etc.
HU20X 375 51.06 0.6 10 92.2 1730 14.43 3800 For general use of high-speed milling and drilling, applicated
for alloy steel, stainless steel, cast iron, non-ferrous metal,
high-temperature alloy etc.
Submicron HU20 372 50.65 0.7 10 91.9 1600 14.45 3800 For general use of milling and drilling, applied for alloy
steel. Stainless steel, non-ferrous metal, high-temperature
alloy, etc.
HU20E 362 49.29 0.7 10 91.8 1600 14.45 3700 For general use of economic milling and drilling, applicated
for alloy steel, stainless steel, non-ferrous metal, high
temperature alloy etc.
HU12 361 49.15 1 6 92.5 1740 14.85 3000 The best material for diamond coating, suitable for fiber
reinforced material (carbon fiber and glass fiber)、
composite material、 high-silicon aluminum alloy and
graphite products.
HF30F 329 44.79 0.8 10 91.8 1600 14.3 3500 The economic grade for milling applied for alloy steel,  non-
ferrous metal etc.
