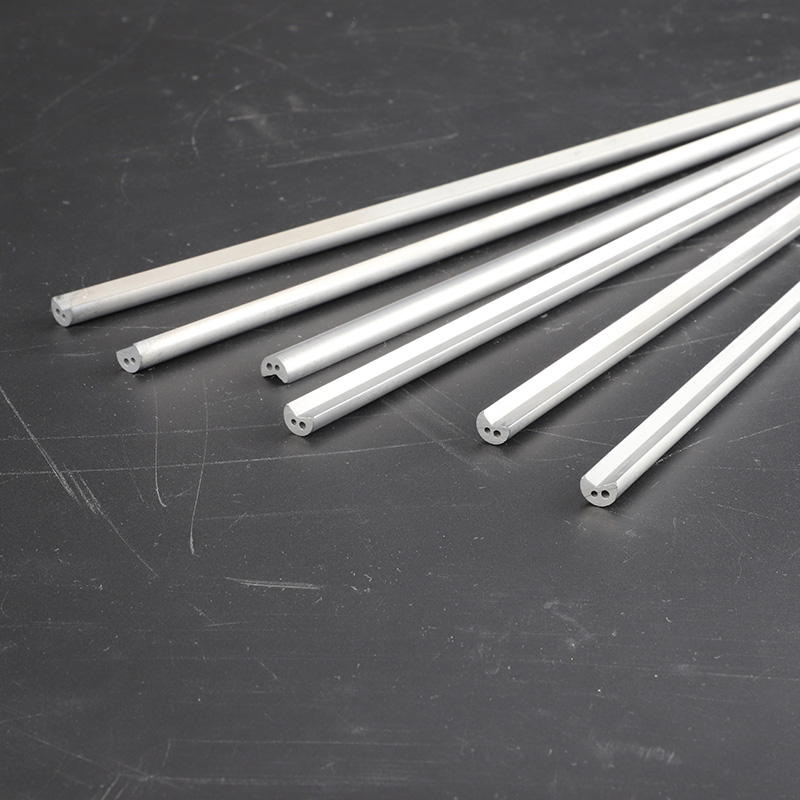

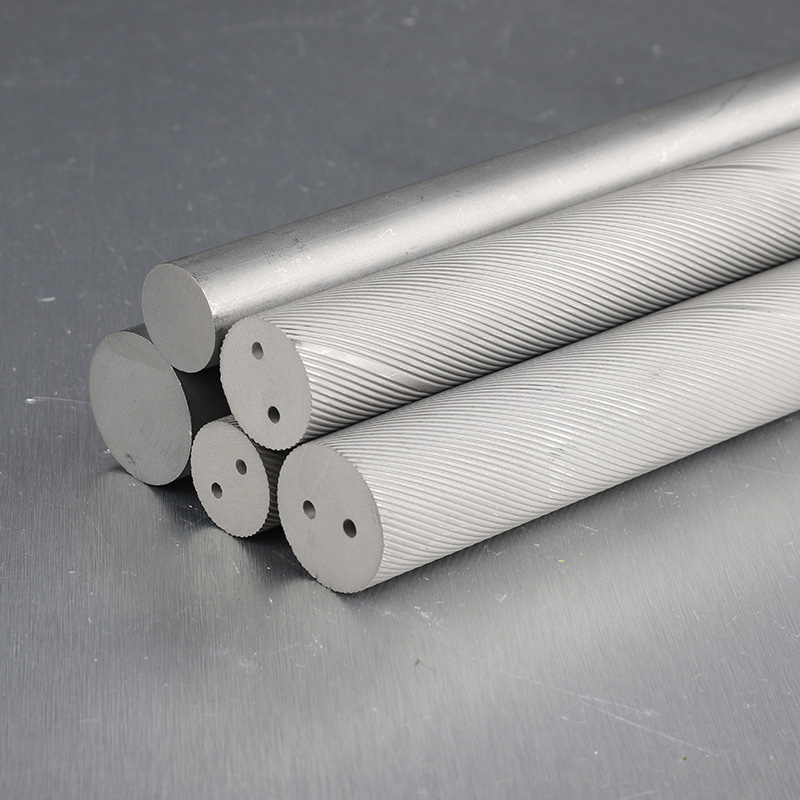

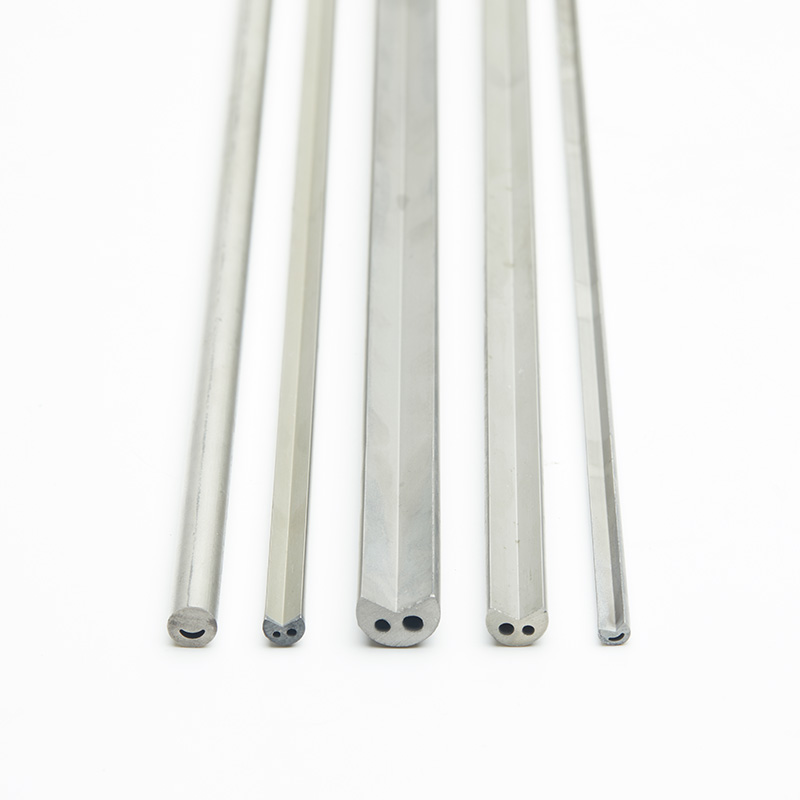

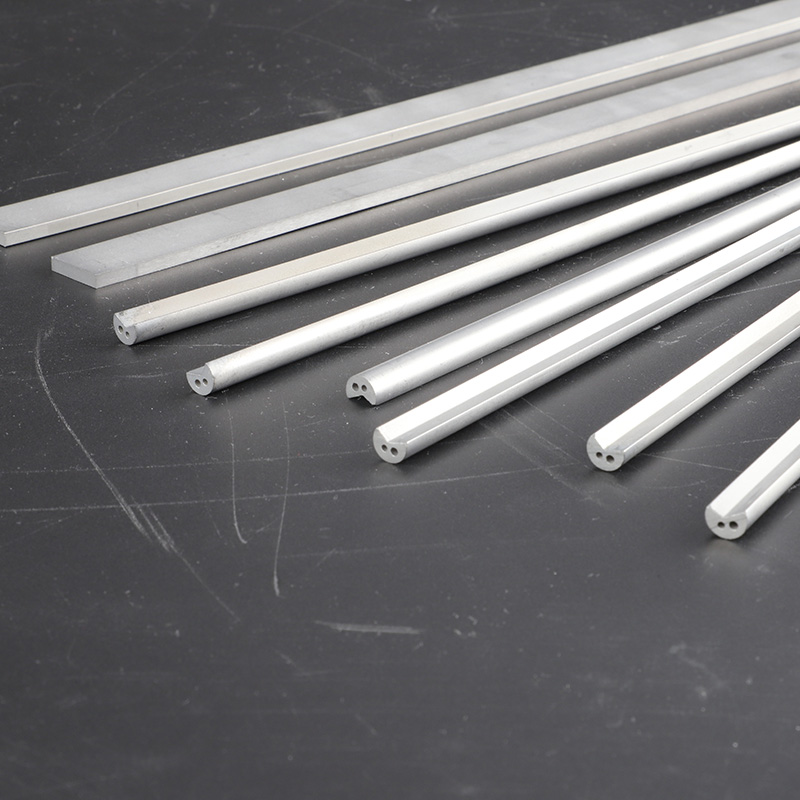

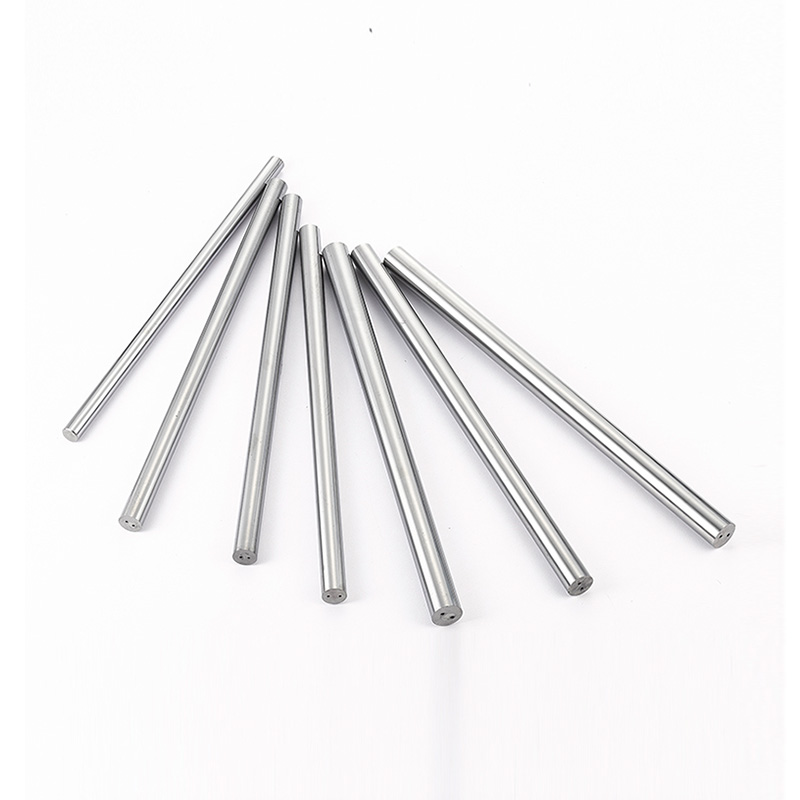

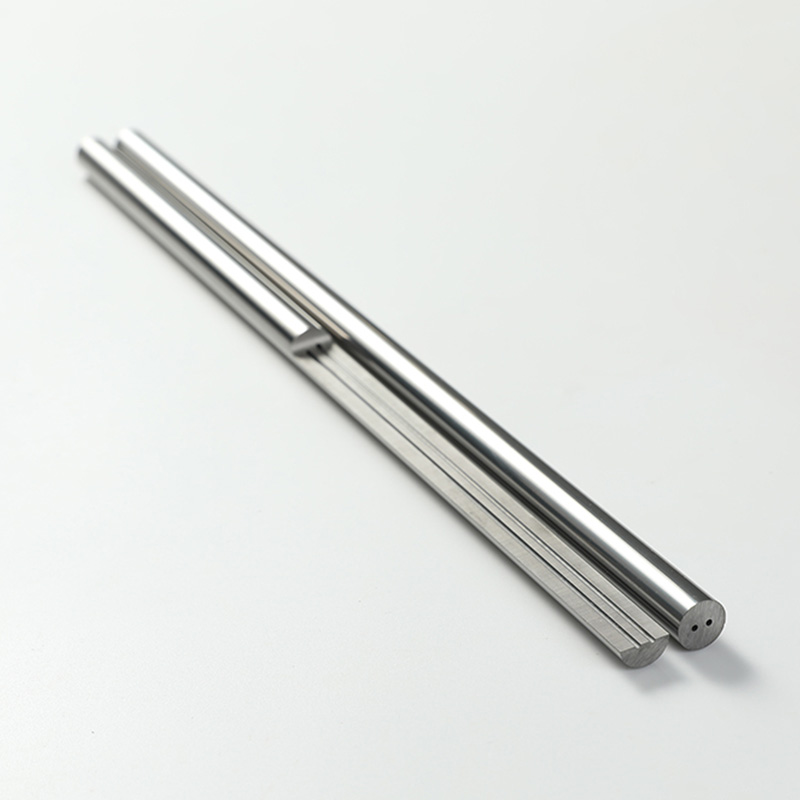

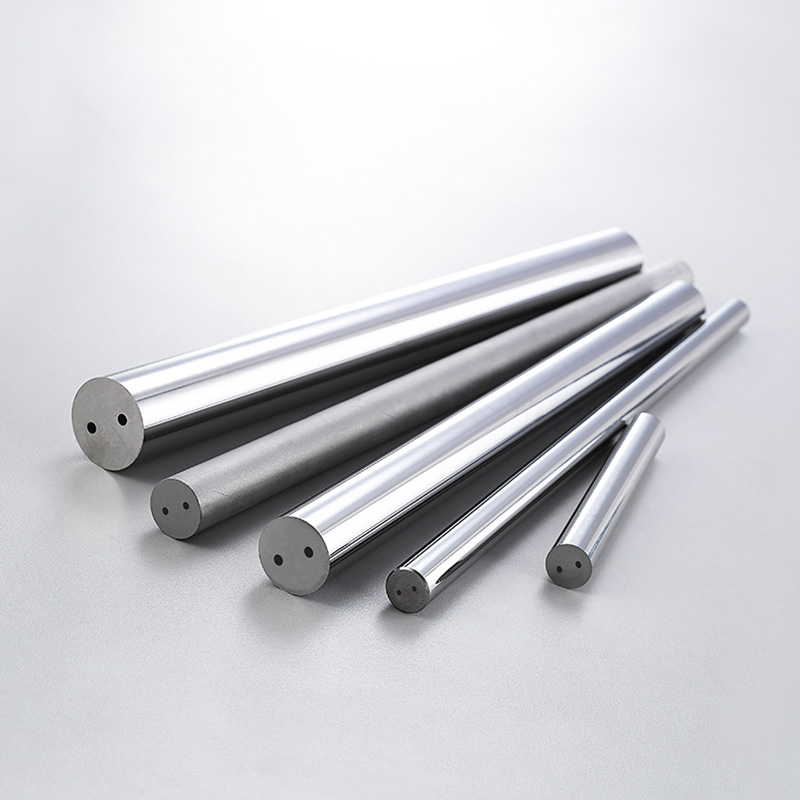

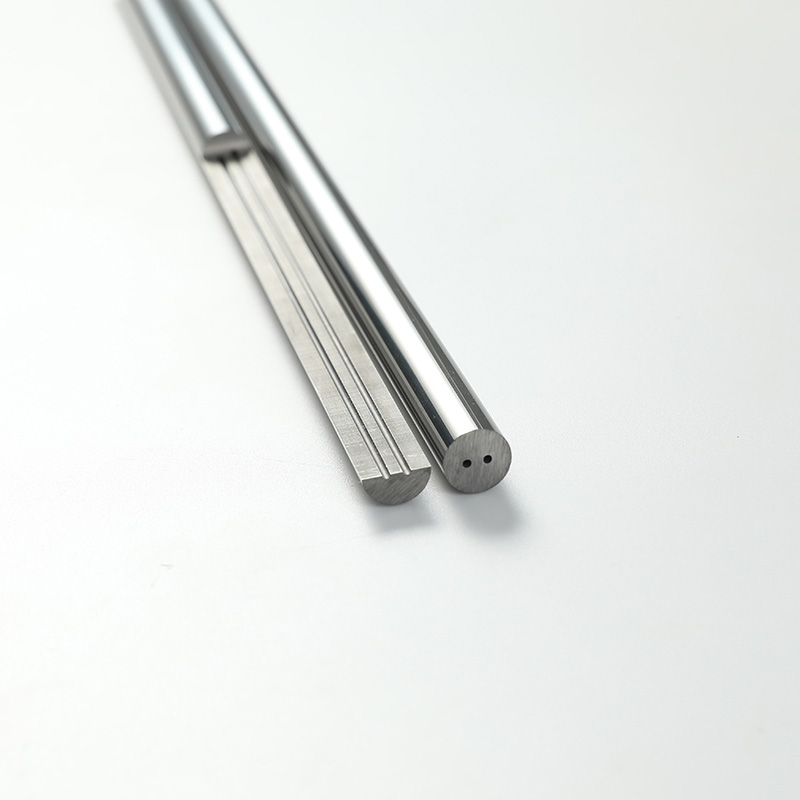

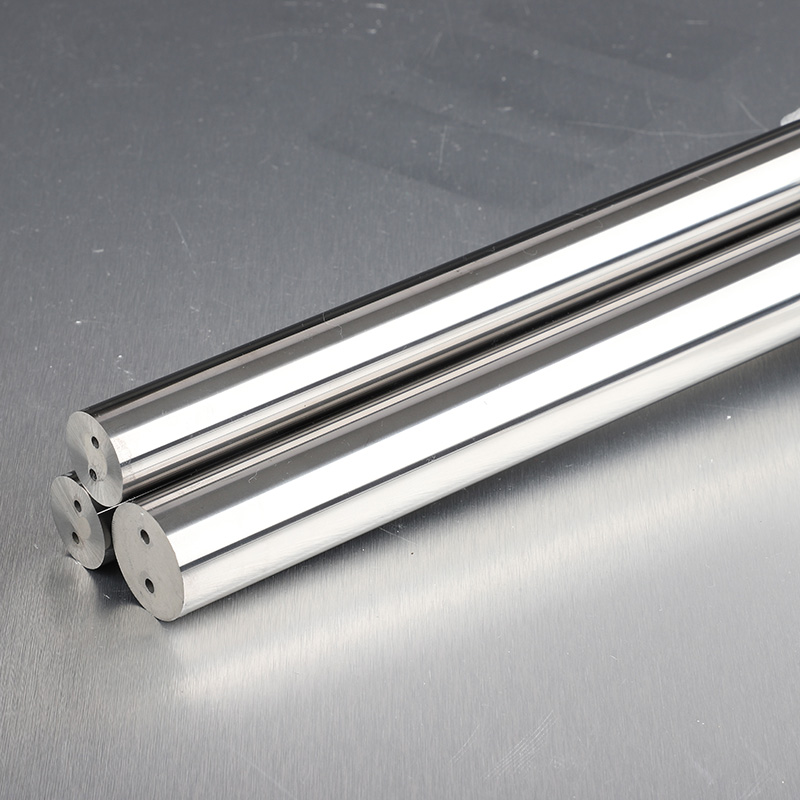

Carbide Double Straight Hole Rod

Inquiry

PREV：No previous article NEXT：Carbide Needle

Product introduction

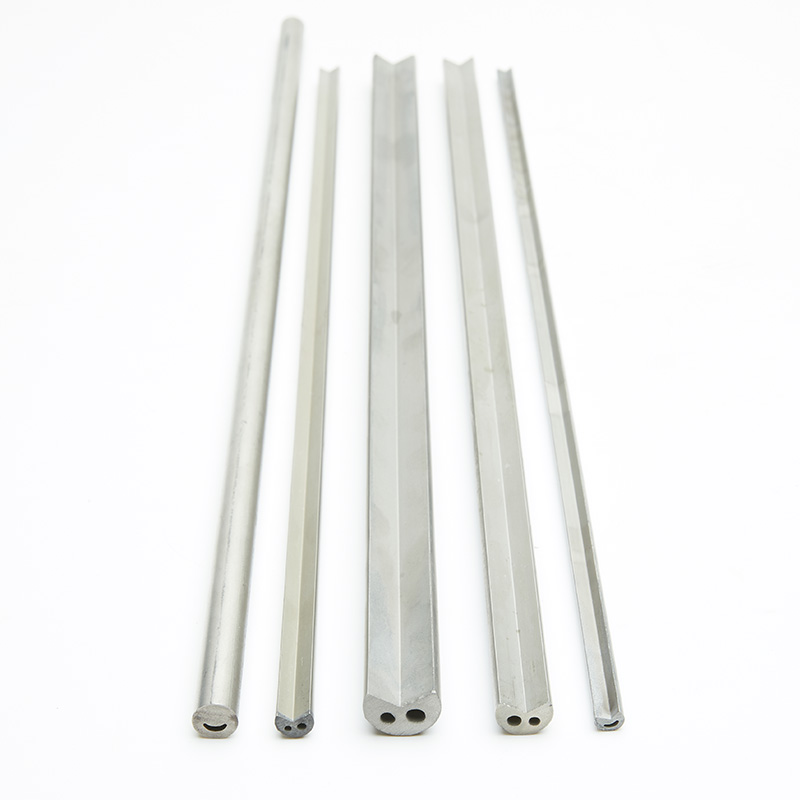

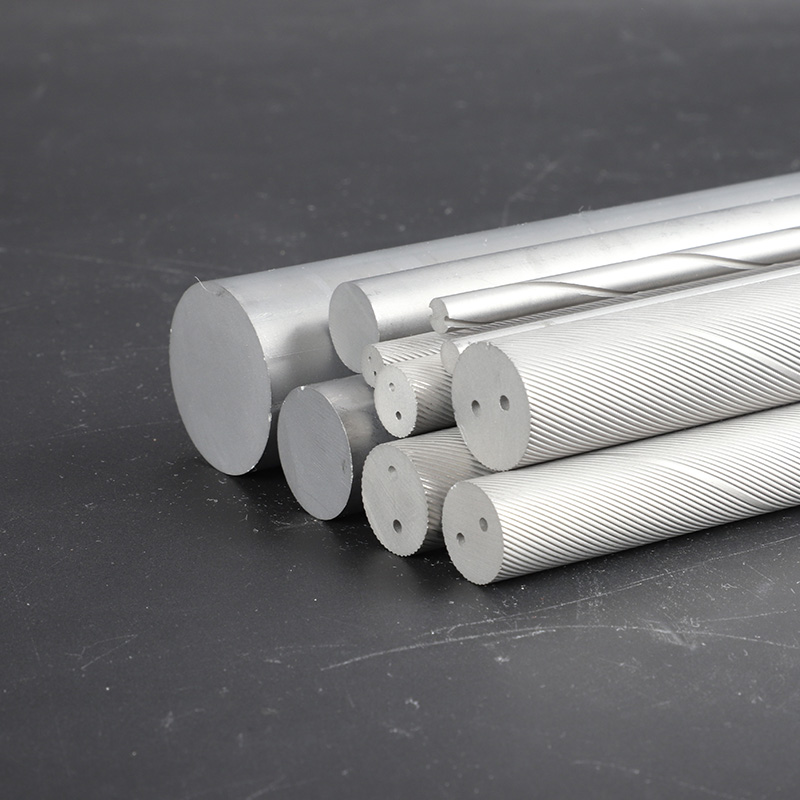

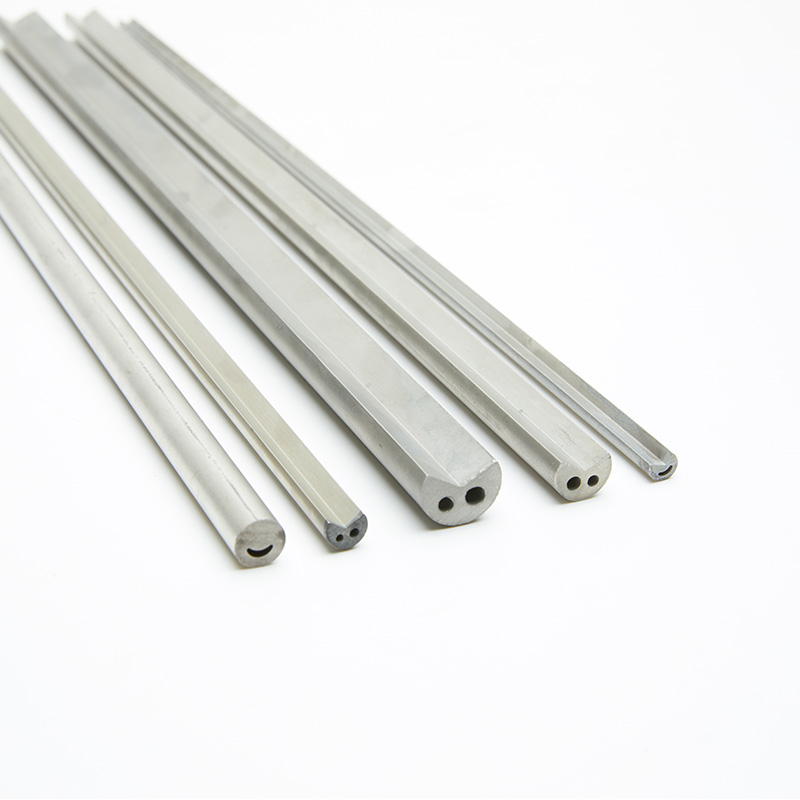

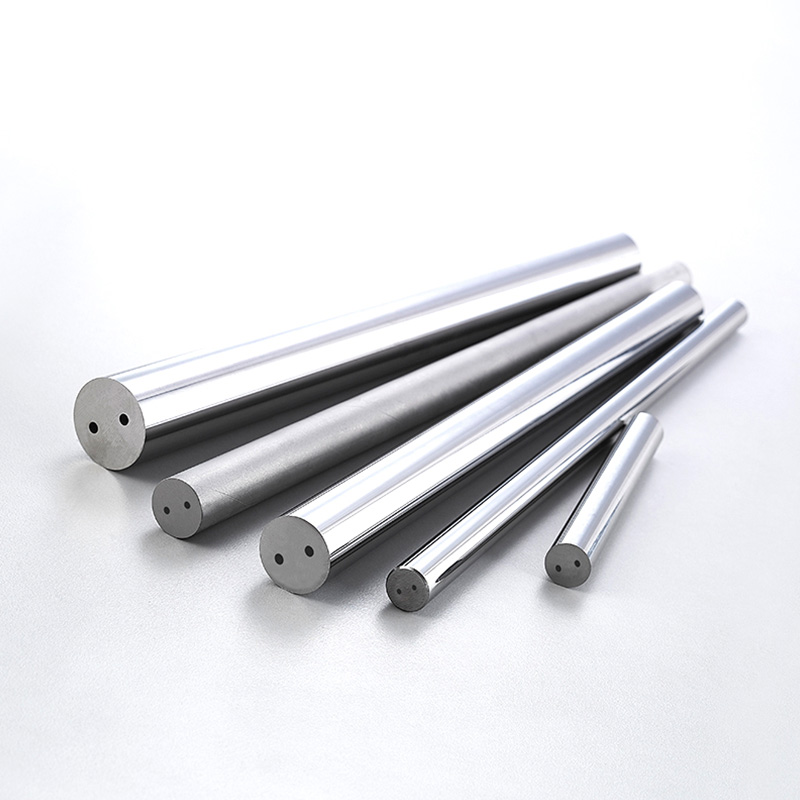

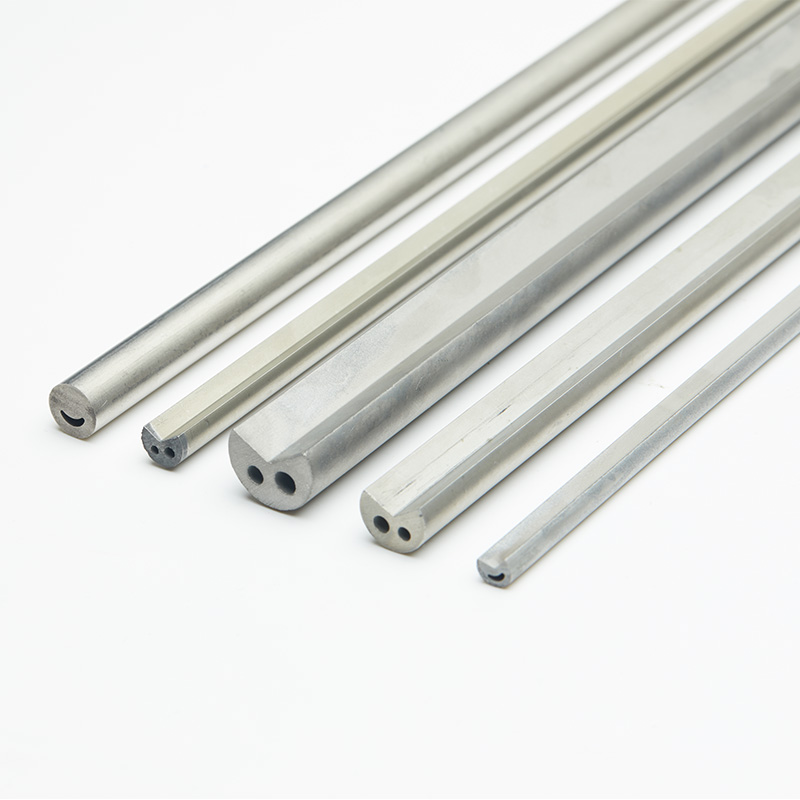

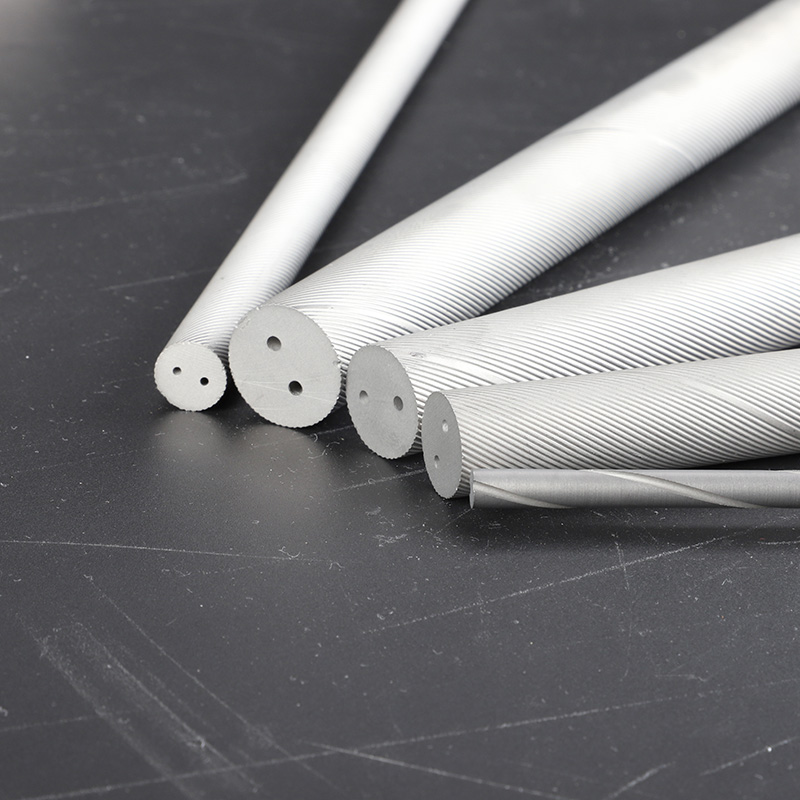

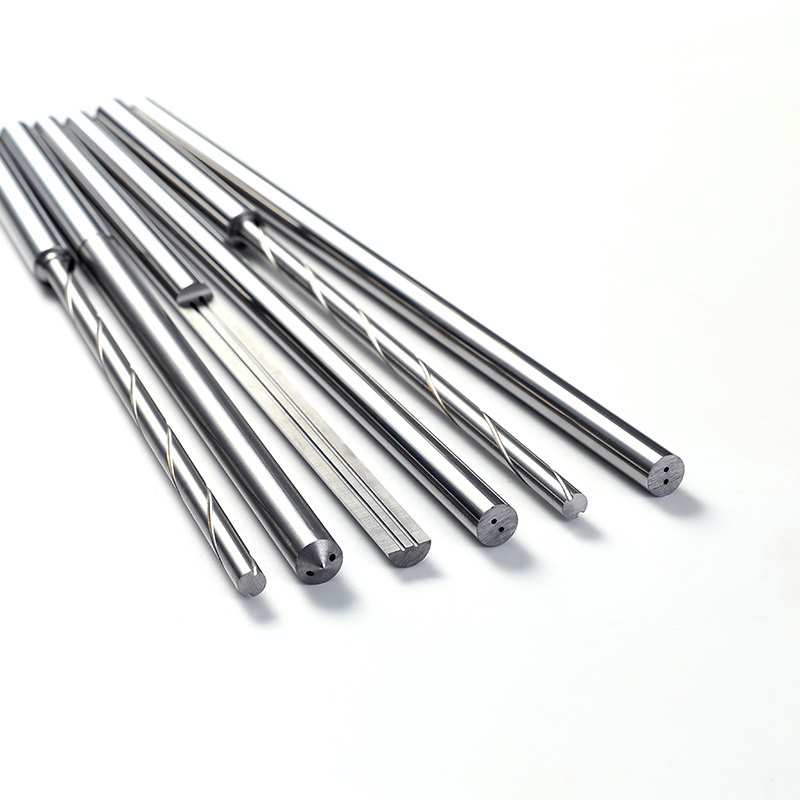

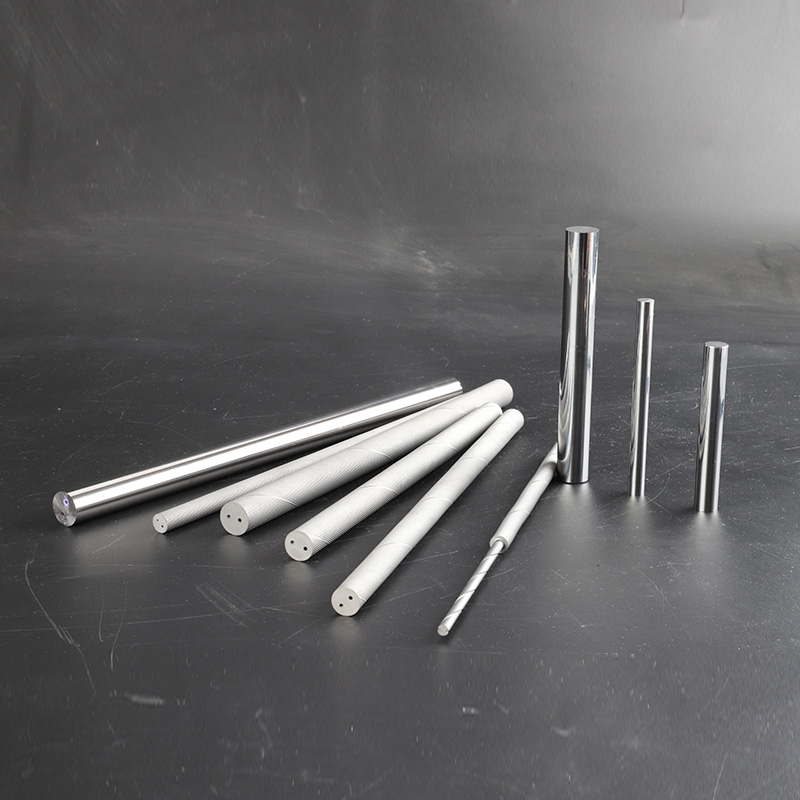

Carbide double straight hole round rod is a carbide cutting tool, which is suitable for different rough grinding parameters, cutting materials and non-metallic materials. At the same time, carbide double straight hole round rod can also be applied to traditional automatic, semi-automatic lathes and so on.

Physical Properties

φD Outer diameter			φd Inner hole		D1 Bolt Circle		Hole Deviation	Length (0,+5)
Unground	To1.	Ground	dia.	to1.	Space	tol.
Unground	lower/upper	h6/h5	dia.	lower/upper	Space	lower/upper
6.3	+0/+0.2	6	1	±0.1	2.90	-0.2/+0	0.15	330
7.3	+0/+0.3	7	1	±0.1	3.40	-0.2/+0	0.15	330
8.3	+0/+0.3	8	1	±0.1	3.85	-0.2/+0	0.15	330
9.3	+0/+0.3	9	1	±0.1	2.45	-0.2/+0	0.20	330
10.3	+0/+0.3	10	1.4	±0.15	4.85	-0.3/+0	0.20	330
11.3	+0/+0.3	11	1.4	±0.15	4.85	-0.3/+0	0.30	330
12.3	+0/+0.3	12	1.8	±0.2	5.85	-0.3/+0	0.30	330
13.3	+0/+0.4	13	1.8	±0.2	5.85	-0.3/+0	0.34	330
14.3	+0/+0.4	14	1.8	±0.2	6.85	-0.3/+0	0.37	330
15.3	+0/+0.4	15	2	±0.2	6.85	-0.3/+0	0.40	330
16.3	+0/+0.4	16	2	±0.2	7.85	-0.3/+0	0.45	330
17.3	+0/+0.5	17	2	±0.2	7.85	-0.3/+0	0.47	330
18.3	+0/+0.5	18	2	±0.2	8.85	-0.3/+0	0.5	330
19.3	+0/+0.5	19	2	±0.2	8.85	-0.3/+0	0.5	330
20.3	+0/+0.5	20	2.5	±0.25	9.80	-0.3/+0	0.5	330
21.3	+0/+0.5	21	2.5	±0.25	9.80	-0.3/+0	0.5	330
22.3	+0/+0.5	22	2.5	±0.25	10.80	-0.4/+0	0.5	330
23.3	+0/+0.5	23	2.5	±0.25	10.80	-0.4/+0	0.5	330
24.3	+0/+0.5	24	3	±0.25	11.75	-0.4/+0	0.5	330
25.3	+0/+0.5	25	3	±0.25	11.75	-0.4/+0	0.5	330
26.3	+0/+0.5	26	3	±0.25	13.00	-0.5/+0	0.5	330
28.3	+0/+0.5	28	3	±0.25	14.00	-0.5/+0	0.5	330
30.3	+0/+0.5	30	3	±0.25	14.00	-0.5/+0	0.5	330
32.3	+0/+0.5	32	3	±0.25	14.00	-0.5/+0	0.5	330

Ingredient Content

φD	Unground tol.	Ground tol.	φd		TKφ		Hole Deviation	L (0,+0.197)
φD	Unground tol.	Ground tol.	Dia.	Tol.	Space	tol.	Hole Deviation	L (0,+0.197)
1/4	+0.0118/+0.0236	h6/h5	3/77	±0.0039	4/35	-0.0078/+0	0.0059	13
9/32	+0.0118/+0.0236	h6/h5	3/77	±0.0039	13/97	-0.0078/+0	0.0059	13
5/16	+0.0118/+0.0236	h6/h5	4/85	±0.0059	5/33	-0.0078/+0	0.0059	13
25/64	+0.0118/+0.0236	h6/h5	6/95	±0.0059	17/89	-0.0118/+0	0.0079	13
13/32	+0.0118/+0.0236	h6/h5	6/95	±0.0059	17/89	-0.0118/+0	0.0118	13
27/64	+0.0118/+0.0236	h6/h5	6/95	±0.0059	20/87	-0.0118/+0	0.0118	13
31/64	+0.0118/+0.0275	h6/h5	3/38	±0.0098	20/87	-0.0118/+0	0.0118	13
1/2	+0.0118/+0.0275	h6/h5	3/38	±0.0098	20/87	-0.0118/+0	0.0134	13
9/16	+0.0118/+0.0275	h6/h5	5/51	±0.0098	24/89	-0.0118/+0	0.0146	13
5/8	+0.0118/+0.0275	h6/h5	11/93	±0.0098	17/55	-0.0118/+0	0.0177	13
3/4	+0.0118/+0.0314	h6/h5	11/93	±0.0098	23/66	-0.0118/+0	0.0197	13
13/16	+0.0118/+0.0314	h6/h5	11/93	±0.0098	27/70	-0.0118/+0	0.0197	13

Product parameters

Classification	Grade	Sept. Price Sept. Price (kg/USD )	Sept. Price Sept. Price (USD/kg)	Grain Size (um)	Cobalt Content (Co%)	Hardness (HRA)	Hardness (HV30)	Density (g/cm³ )	TRS (N/mm²)	Application Recommended
Ultrafine	HU12U	362	49.29	0.4	6	93.8	1900	14.8	3900	Applicated to the high-hardness material processing including PCB drills, milling cutters, and gravers.
	HU18U	387	52.69	0.4	9	93	1850	14.5	3900	Applicated for processing the hardness and difficult-to- machine materials, stainless machining, and micro cutter.
	HU24U	392	53.37	0.4	12	92.6	1760	14.12	4200	Special carbide material of high-speed milling applied for alloy steel (HRC50-60), and stainless steel. Non-ferrous metal. Titanium alloy, high-temperature alloy, etc.
	HU20X	375	51.06	0.6	10	92.2	1730	14.43	3800	For general use of high-speed milling and drilling, applicated for alloy steel, stainless steel, cast iron, non-ferrous metal, high-temperature alloy etc.
Submicron	HU20	372	50.65	0.7	10	91.9	1600	14.45	3800	It is applied to alloy steel for general milling and drilling. Stainless steel, non-ferrous metal, high-temperature alloy, etc.
	HU20E	362	49.29	0.7	10	91.8	1600	14.45	3700	For general use of economic milling and drilling, applicated for alloy steel, stainless steel, non-ferrous metal, high temperature alloy etc.
	HU12	361	49.15	1	6	92.5	1740	14.85	3000	The best material for diamond coating, suitable for fiber reinforced material (carbon fiber and glass fiber)、 composite material、 high-silicon aluminum alloy and graphite products.
	HF30F	329	44.79	0.8	10	91.8	1600	14.3	3500	The economic grade for milling, applied for alloy steel, non- ferrous metal etc.
