How does the composition of Alloy Electrical Contact Materials affect their conductivity and wear resistance?

Alloy Electrical Contact Materials are an indispensable key component in modern electrical equipment and are widely used in devices such as switches, relays, and circuit breakers. The performance of these materials directly affects the operating efficiency and service life of electrical equipment. Among them, conductivity and wear resistance are two core indicators for measuring the performance of alloy electrical contact materials. These two characteristics are mainly determined by the composition of the material. The following will discuss in detail the effects of different metal elements and their proportions on conductivity and wear resistance.

Silver (Ag): Improve conductivity and corrosion resistance
Silver is one of the most commonly used base metals in alloy electrical contact materials because of its extremely high electrical and thermal conductivity. Silver also has good corrosion resistance and can maintain stable performance in humid or polluted environments.

Effect on conductivity: Silver has an extremely high electrical conductivity (about 63% IACS), so silver-based alloys usually exhibit excellent electrical conductivity.

Effect on wear resistance: Pure silver has low mechanical strength and is easily worn due to friction. In order to enhance its wear resistance, other hard metals (such as tungsten, nickel, copper, etc.) are usually added to form a composite material.
Copper (Cu): Improved conductivity and reduced costs
Copper is a relatively low-cost metal with excellent electrical conductivity and is often used as a substitute or supplement to silver.
Impact on conductivity : Copper's electrical conductivity is second only to silver (about 59% IACS), which can significantly reduce material costs while maintaining high electrical conductivity.
Impact on wear resistance : Copper's hardness and wear resistance are better than silver, but still insufficient to meet the needs of high-load applications alone. Therefore, copper is often used in combination with hard metals to further enhance its wear resistance.
Tungsten (W): Enhanced wear resistance and high temperature resistance
Tungsten is a high-melting point, high-strength metal that is often used to improve the wear resistance and high temperature resistance of alloys.
Impact on conductivity : Tungsten has poor electrical conductivity, so adding tungsten to the alloy will slightly reduce the overall conductivity. However, by optimizing the ratio, the relationship between conductivity and wear resistance can be balanced.
Impact on wear resistance : Tungsten's high hardness and ablation resistance make it an ideal reinforcement material. For example, in silver-tungsten (Ag-W) alloys, tungsten particles can effectively resist arc erosion and mechanical wear.
Nickel (Ni): Improve strength and oxidation resistance Nickel is a hard metal with good oxidation resistance and corrosion resistance, and is often used to improve the mechanical strength and wear resistance of alloys.
Effect on conductivity : Nickel has low conductivity, so adding nickel to the alloy will reduce the overall conductivity. But within a reasonable range, this effect can be controlled by optimizing the formula.
Effect on wear resistance : The addition of nickel significantly improves the hardness and wear resistance of the alloy, especially in high-frequency switching or high-current environments.
Tin (Sn) and lead (Pb): Improve welding performance Tin and lead are often used in low-voltage contact materials to improve welding performance and reduce contact resistance.
Effect on conductivity : Tin and lead have high conductivity, which helps maintain good contact performance.
Effect on wear resistance : Tin and lead have low hardness and relatively poor wear resistance, so they are usually used only as auxiliary components.
The conductivity and wear resistance of alloy electrical contact materials are the result of the combined effect of multiple metal elements. Here are some common optimization strategies:

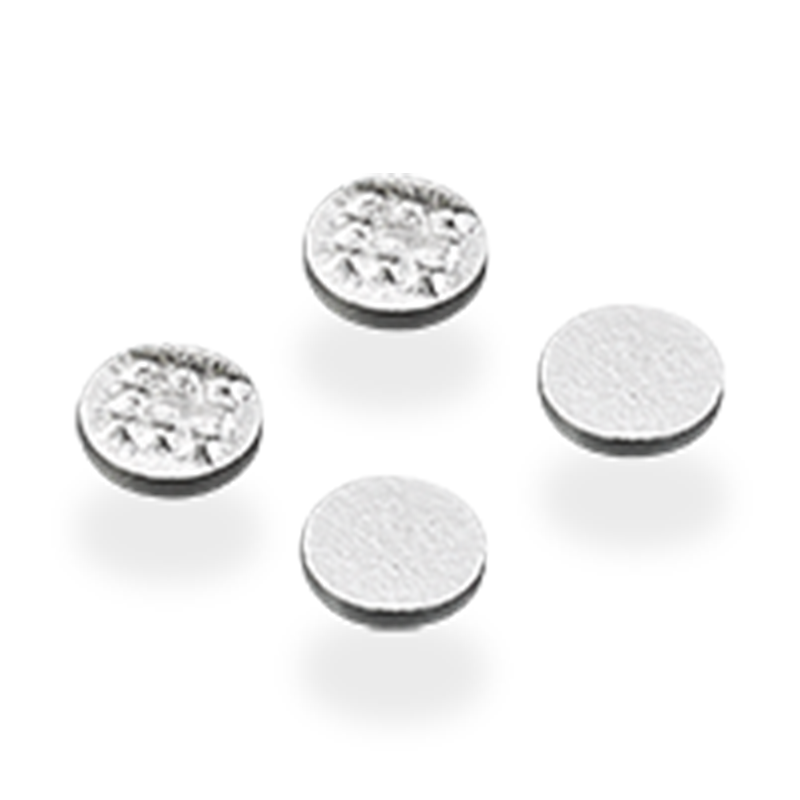

Silver-based alloys (such as Ag-W, Ag-Cu, Ag-Ni):
Silver provides high conductivity, tungsten, copper or nickel enhances wear resistance and high temperature resistance.
Applicable to high voltage and high current environments.
Copper-based alloys (such as Cu-W, Cu-Ni):
Copper reduces costs and maintains good conductivity, tungsten or nickel improves wear resistance.
Applicable to medium and low voltage application scenarios.

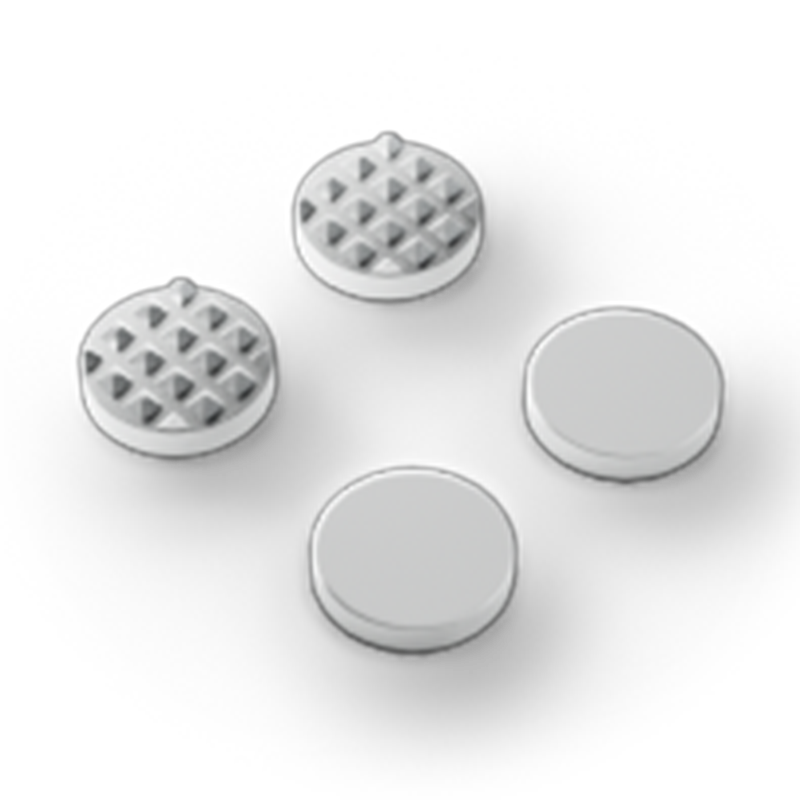

Composite materials (such as Ag-W-C, Ag-Ni-Ce):
Combining the advantages of multiple elements to achieve the best balance of conductivity, wear resistance and ablation resistance.
Applicable to special fields with high performance requirements.

By precisely controlling the proportion of each component, alloy electrical contact materials that meet specific application requirements can be designed. In the future, with the development of new material technology, researchers will continue to explore more efficient formulas and processes to promote the development of electrical contact materials towards higher performance.
